Description

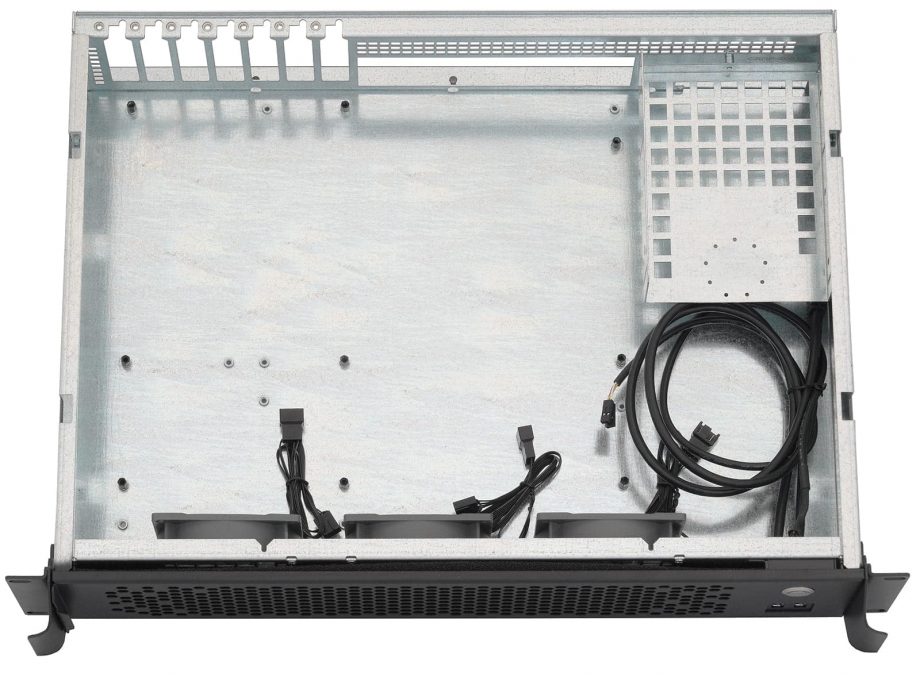

Sliger CX2137b 2U rackmount chassis with 13″ depth for ATX motherboard
- support for SSI-CEB/ATX/EATX/Micro-ATX/Flex-ATX/Mini-ITX motherboards
- 7x Helf-Height Full-Length (2U HHFL) PCIe cards and GPUs
- 2x USB 3.0 type A front I/O
- supports up to 3x 80mm fans and 2U CPU air coolers up to 67 tall
- supports up to 5x 2.5″ SSDs, 2x 3.5″ HDDs, or a mix of both
- FlexATX form factor power supply support
NOTE: CPU coolers and fans are available for purchase separately depending on your needs. Check our Cooling and Ventilation section.
Specifications

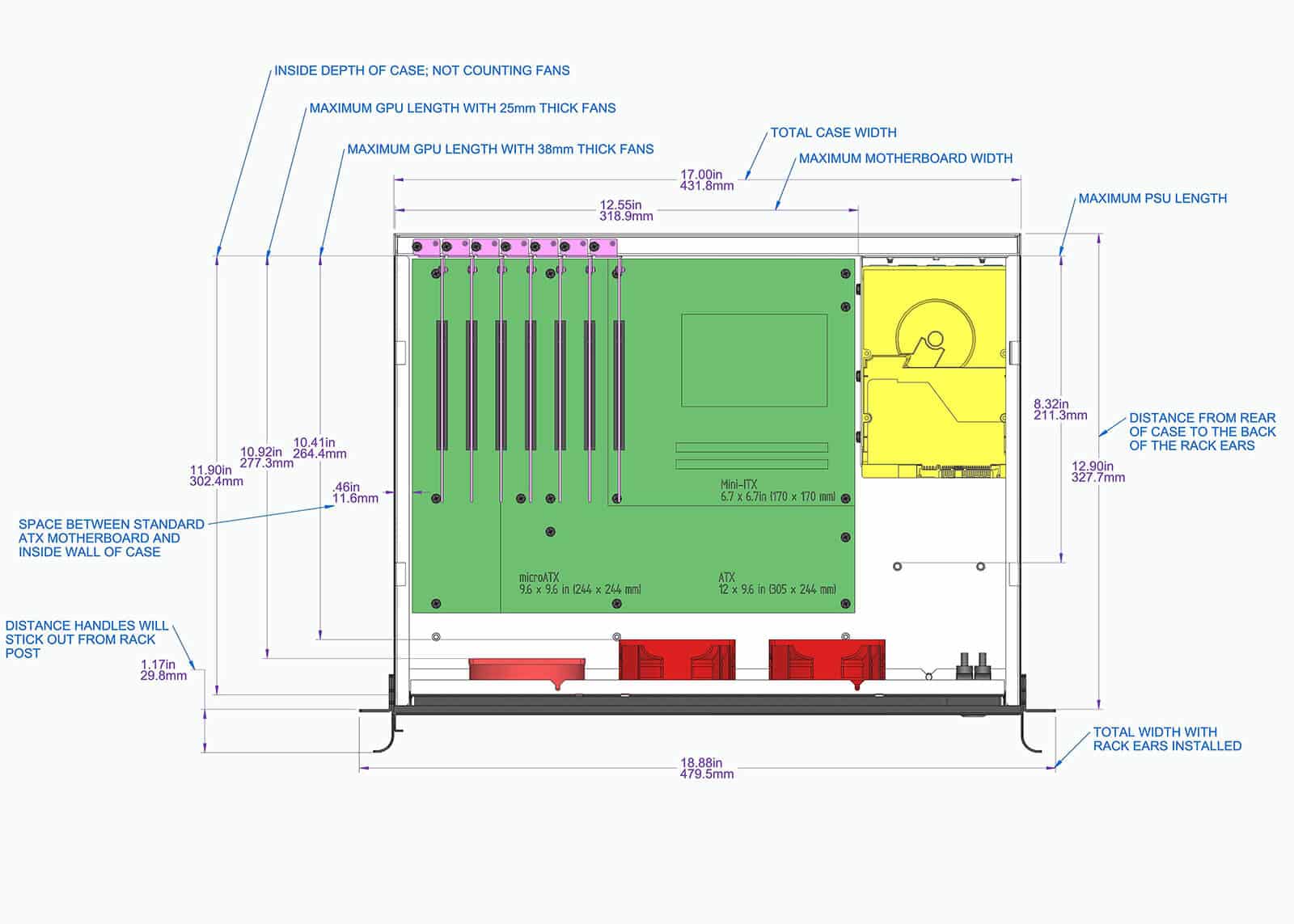

| Motherboard support | SSI-CEB (305mm x 267mm)
EATX (305mm x 267mm) ATX (305mm x 244 mm) MicroATX (245 x 245mm) FlexATX (229 x 191 mm) Mini-DTX (203mm x 170 mm) Mini-ITX (170mm x 170 mm) |
| CPU Air Coolers | up to 67.5mm tall
NOTE: 60mm or taller “Top Down Coolers” are NOT recommended. IE Noctua L65 or L12S coolers. Recommended 2U flow-through server CPU coolers like Dynatron 2U A47 or similar. |
| Fan Mounting | Front:
up to 3x 80mm x 25mm fans (available separately) Case includes washable / reusable UL94 open-cell reticulated dust filter |
| GPU / PCIe Cards | 7x Half Height Full Length(HHFL) PCIe slot cutouts
Cards may be referred to as 2U height, low-profile, or MD1/MD2/MD3 form factor Half height vented slot covers are provided with case Max Height: 72.3mm from PCIe finger tab to lid of case Max Length with 25mm fans: 276mm – indluding power connectors Max Length with 38mm fan: 263mm – including power connector Compatible GPUs
|

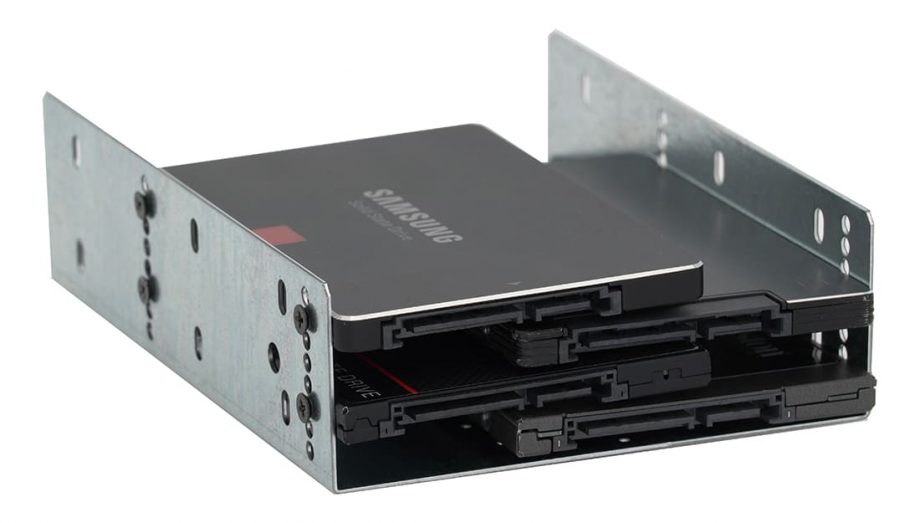

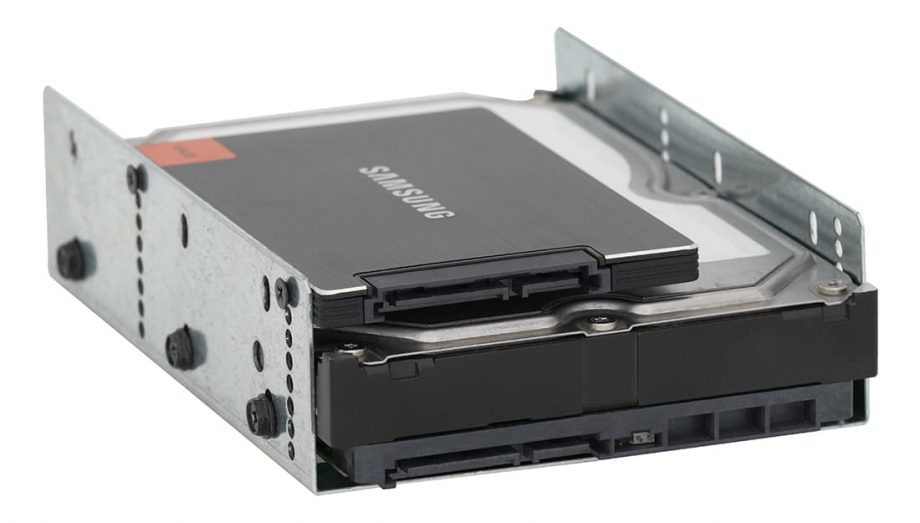

| Storage | Internal mounting bracket with configuration options for:
2x 3.5″ HDD or 4x 2.5″ SSD or 1x 3.5″ HDD and 1x 2.5″ SSD Sliger recommends use of M.2/NVMe and PCIe based storage on motherboard |
| Power Supply | Flex-ATX PSU up to 240mm long |
| Front Panel I/O | 2x USB 3.0 Type A to 19-Pin Motherboard Header |
| Material and Finish | galvanized steel + aluminium, powder coating |
| Case Dimensions (DxWxH) | 331,5mm x 432mm x 88mm
Depth from front rack post is 328mm |
| Compatible Rack Rails | Sliger PM-Series Ball Bearing Slides |
| Rev Control | 01.11.2023 – 1.0 Initial release |
| Scope of delivery | Computer case, mounting hardware, 2x USB 3.0 type A front I/O connectors, dust filter |
| Documents and build recommendations | coming soon |
More details can be found on manufacturer’s website.
