Description

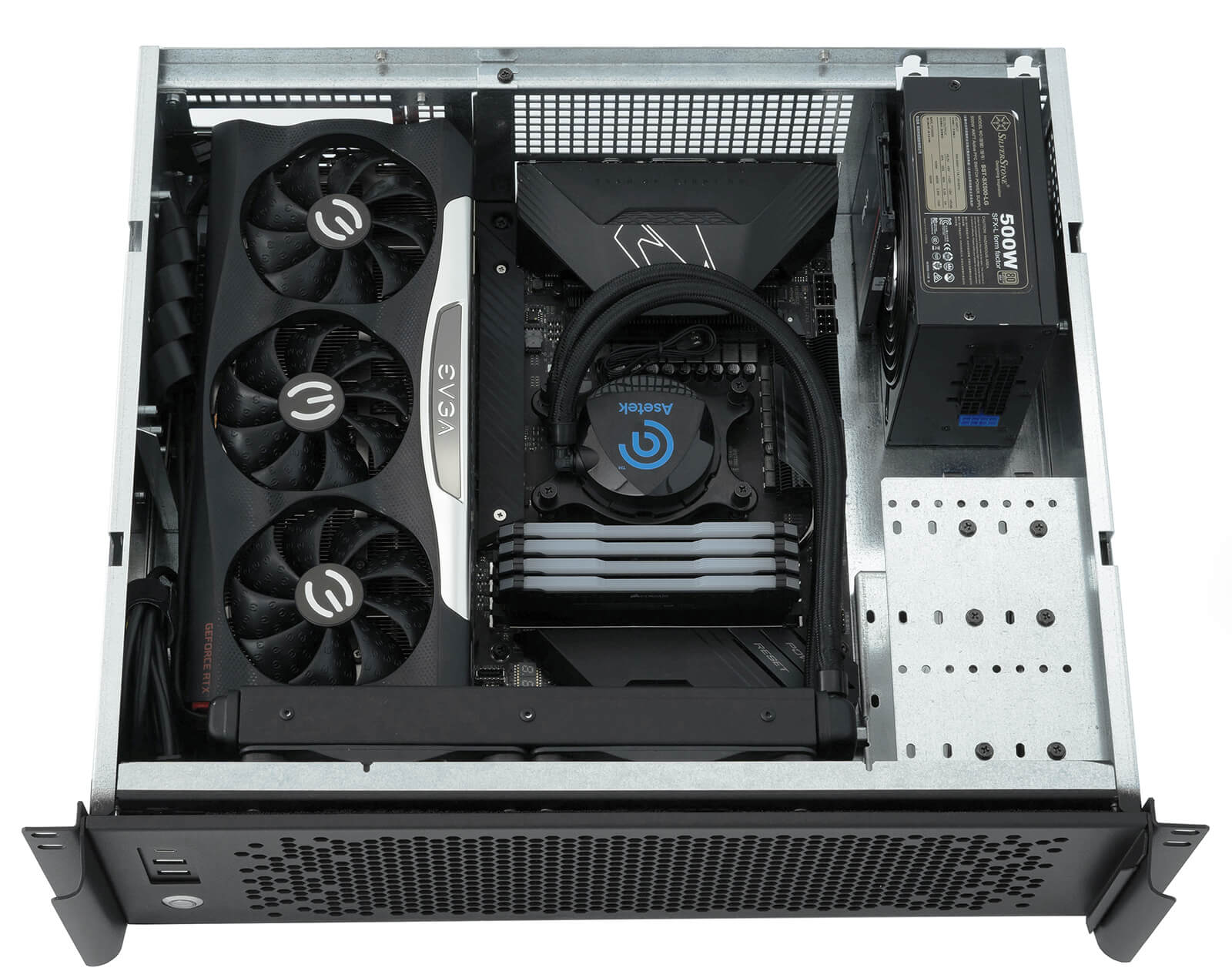

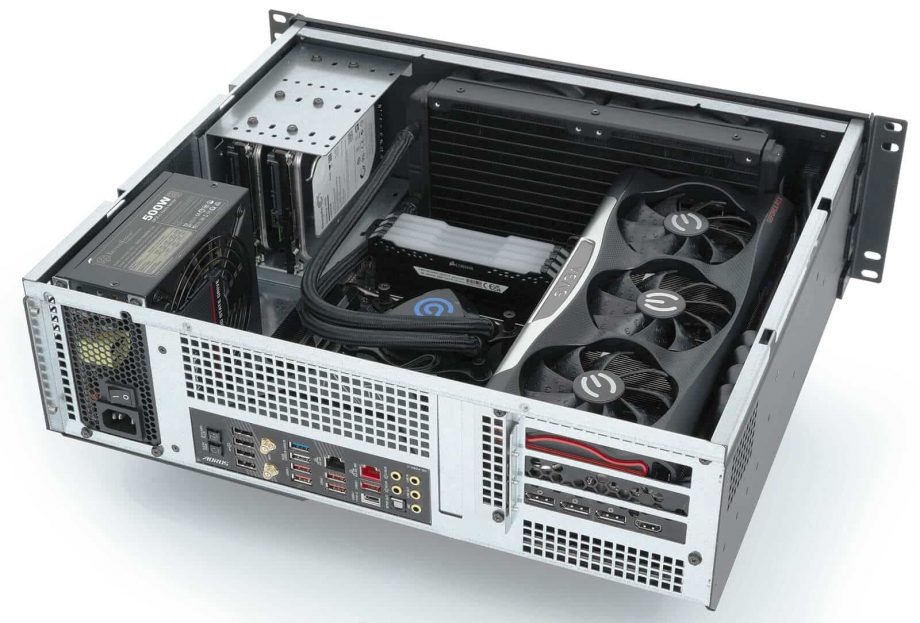

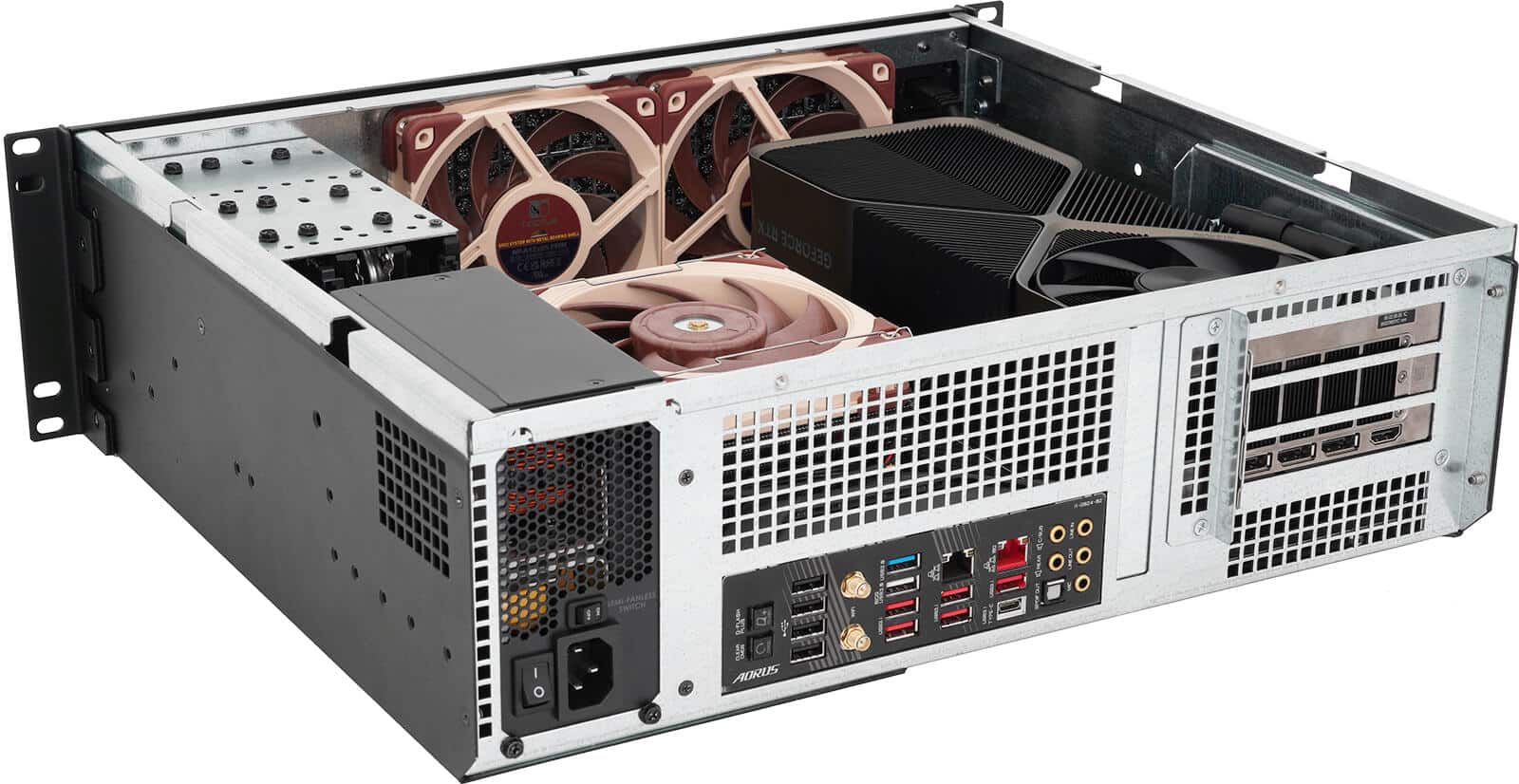

Sliger CX3150i 3U rackmount chassis with 15″ depth
- support for ATX/EATX/Micro-ATX/Flex-ATX/Mini-ITX motherboards
- 1x full-height PCIe card slot + 3-slot PCIe card via 1x PCIe 4.0 x16 riser for over-sized GPUs
- Configurable storage bracket for up to 3x 3.5″ HDD or 8x 2.5″ SSD
- 2x USB 3.0 type A + 1x USB type C 10Gbps front I/O
- supports up to 2x 120mm fans or 240mm AIO cooling (available separately)
- up to 112mm tall CPU air coolers
- SFX/SFX-L power supply support
NOTE: AIO Liquid cooling or fans not included and are available for purchase separately depending on your needs. Check our Cooling and Ventilation section.
Specifications

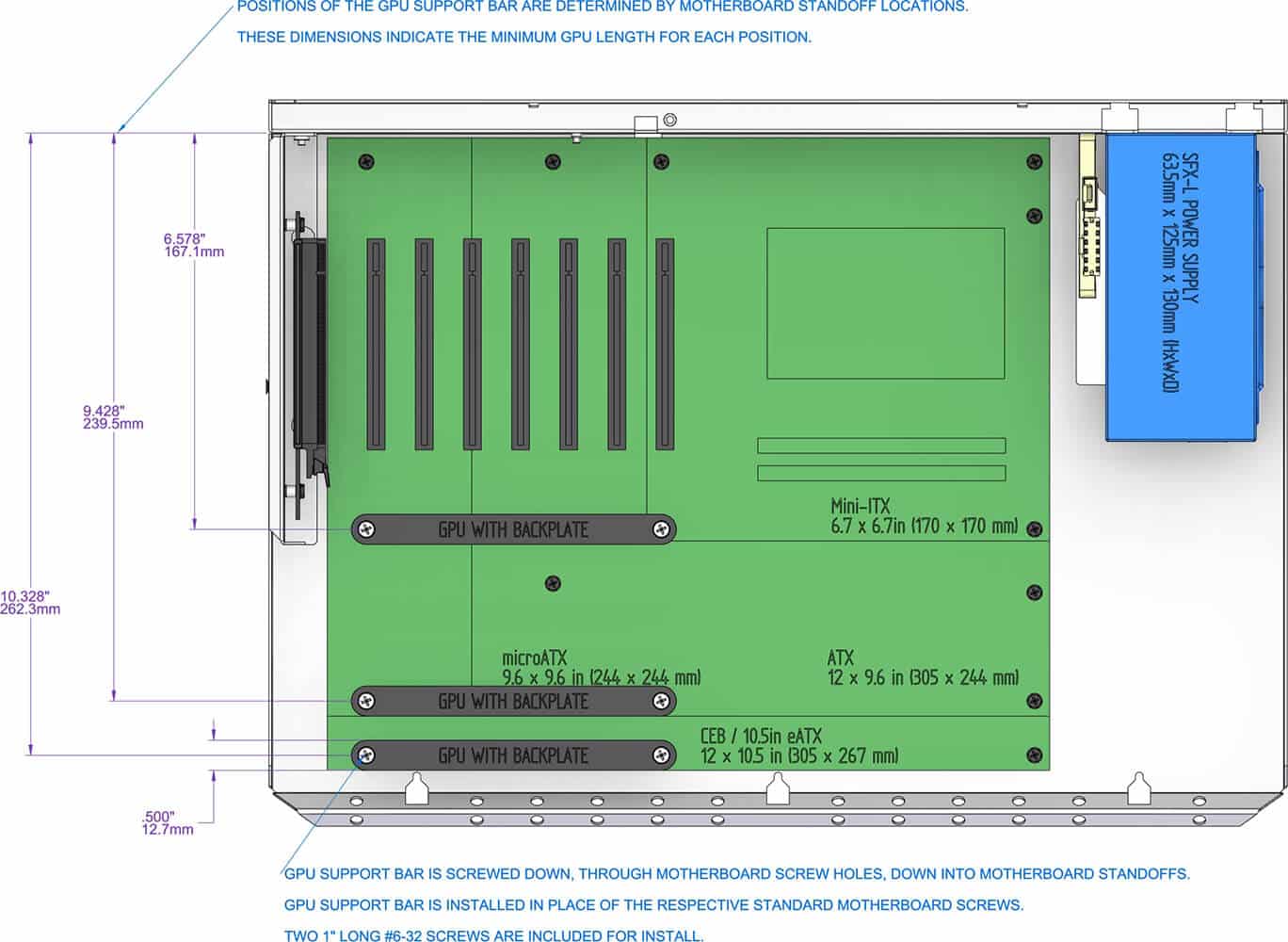

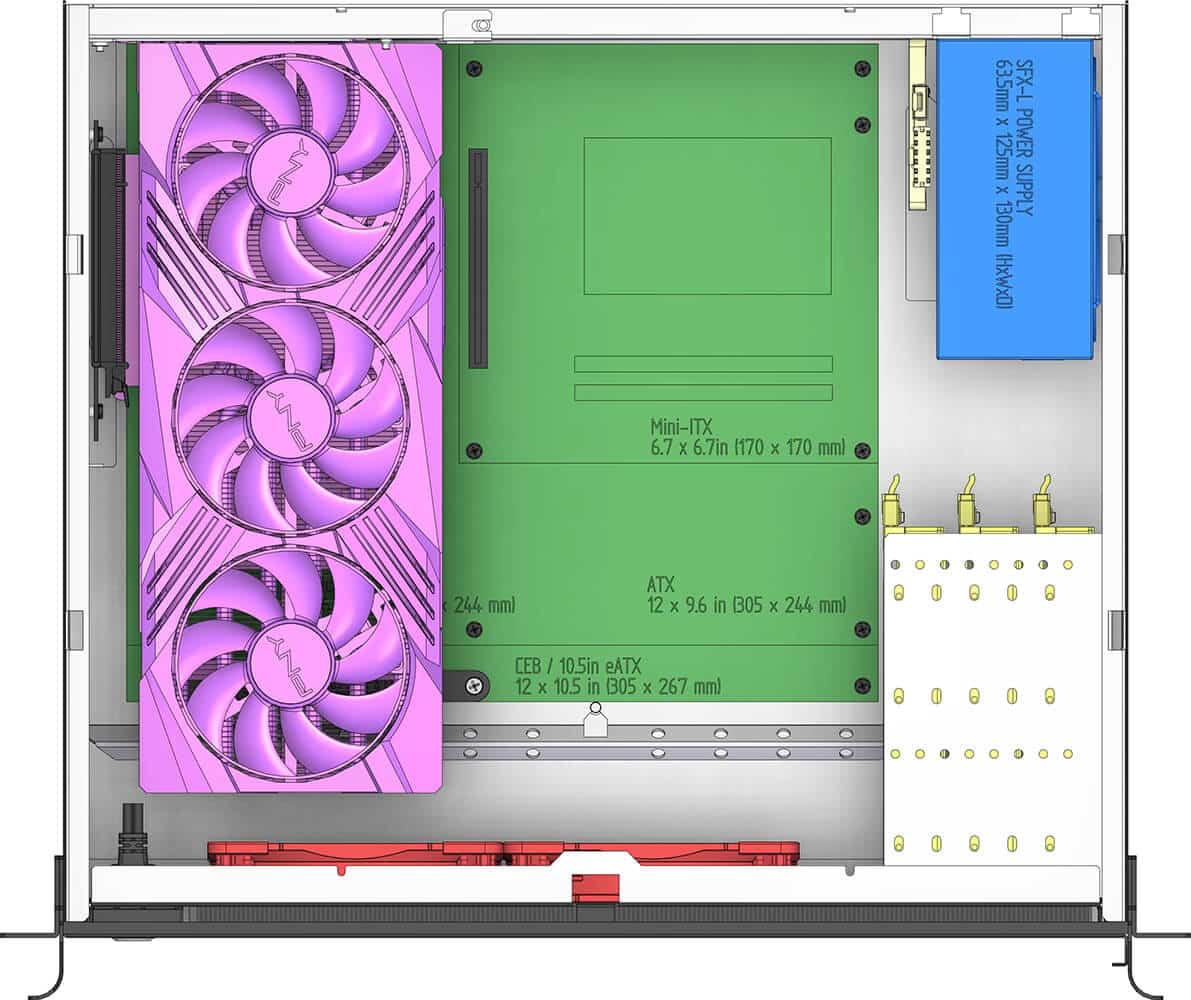

| Motherboard support | EATX (L x W: 305 x 267mm) ATX (L x W: 305 x 244mm) Micro-ATX (L x W: 245 x 245mm) Flex-ATX (L x W: 229 x 191mm) Mini-DTX (L x W: 203 x 170mm) Mini-ITX (L x W: 170 x 170mm) |
| CPU Liquid Cooling | Single Radiator Options
(Asetek Partner AIOs, EKWB AIOs, and Arctic brand AIOs are supported) 1x 240mm liquid coolers or 1x 120mm liquid coolers (AIOs on left fan and right fan position, middle fan is air only) A complete list of compatible Asetek Partner AIO coolers is available here: Asetek Partner AIOs (EVGA, MSI, NZXT, Asus, Razer, etc.) ATTENTION: Please check your radiator or AIO compatibility before purchasing! These cases are designed around specific Asetek AIO radiator sizes with round edges. Radiators with square design and sharp edges are often incompatible. |

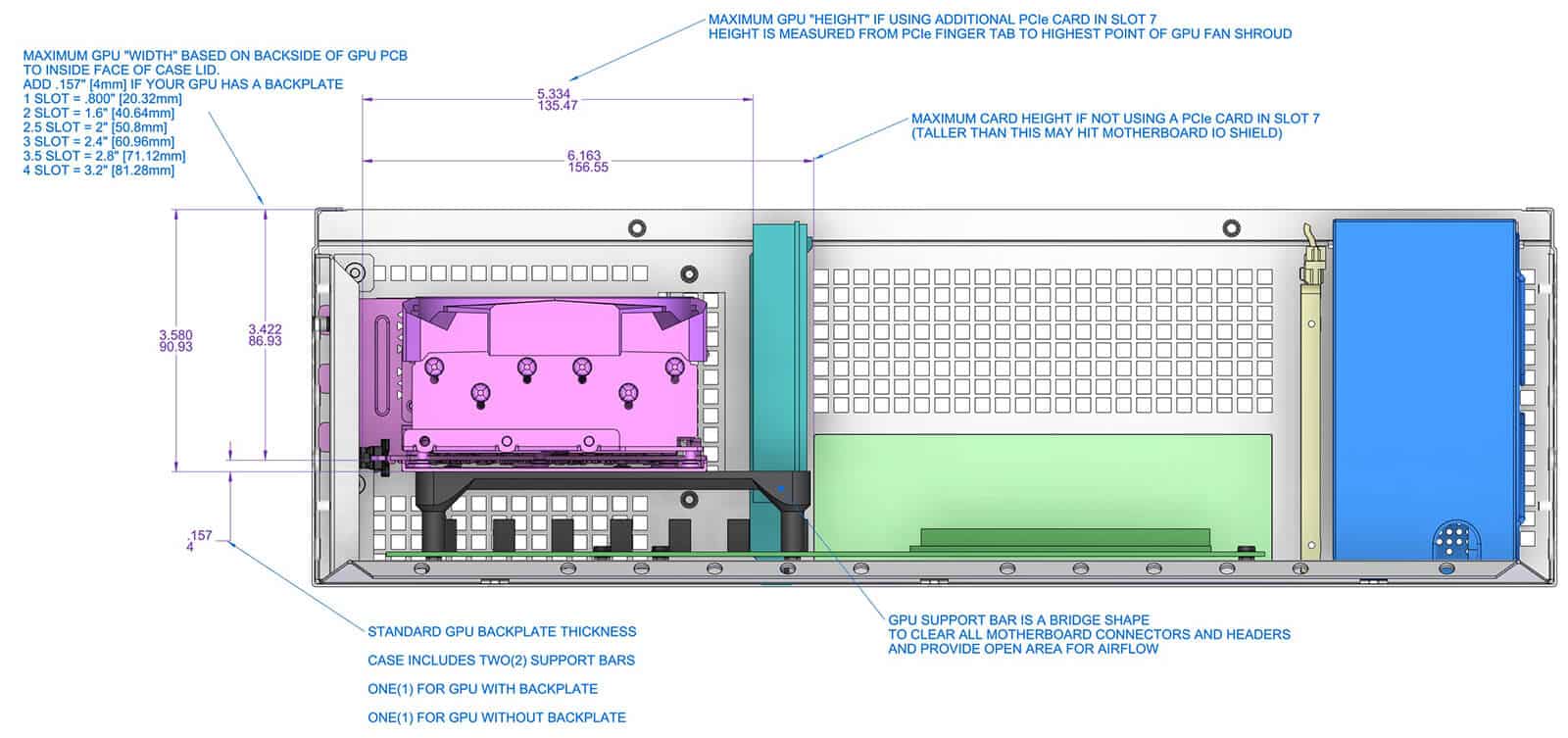

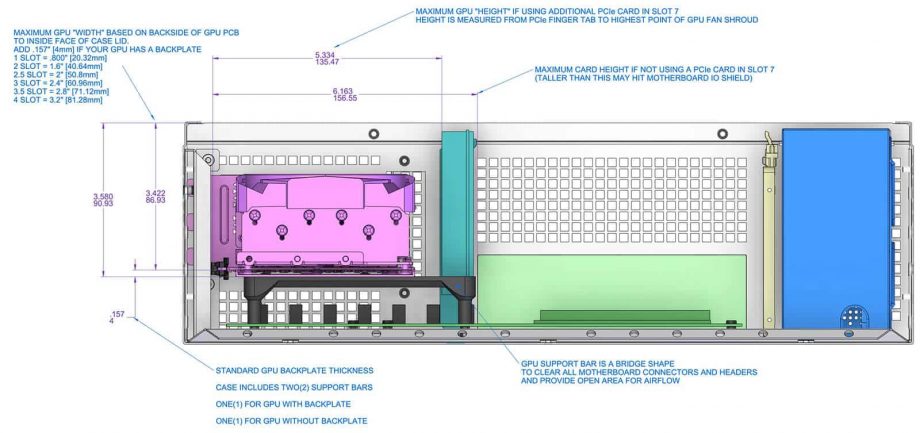

| CPU Air Coolers | up to 110mm tall
Recommended Silent Air Coolers: Noctua NH-D9L |

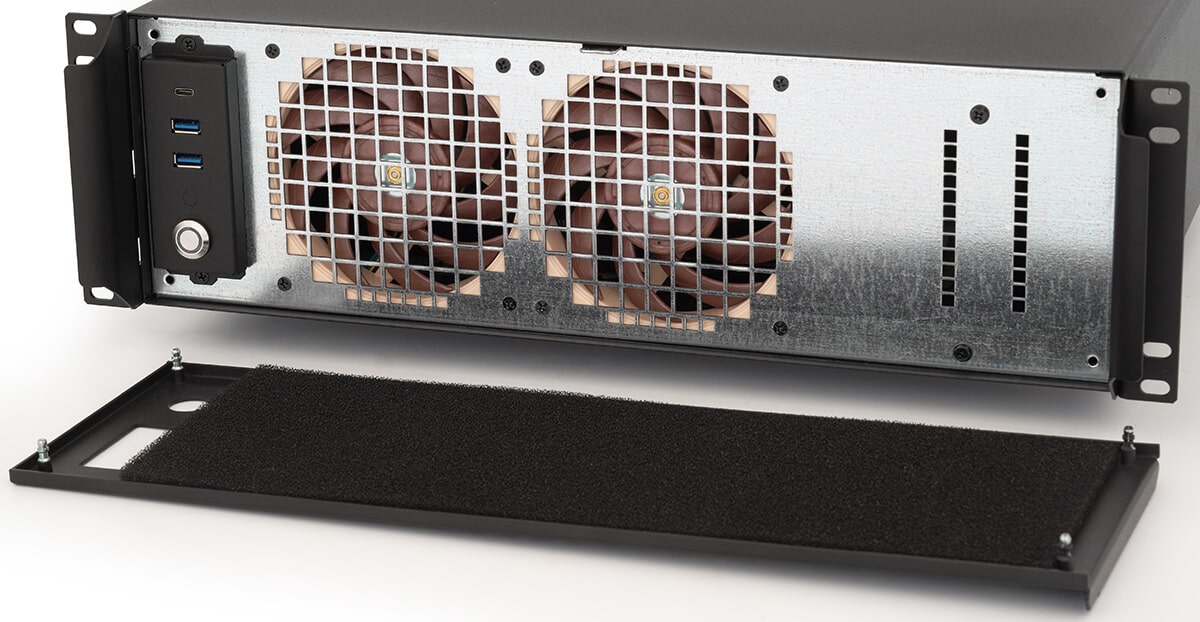

| Fan Mounting | Front:
up to 2x 120mm x 25mm fans (available separately) |

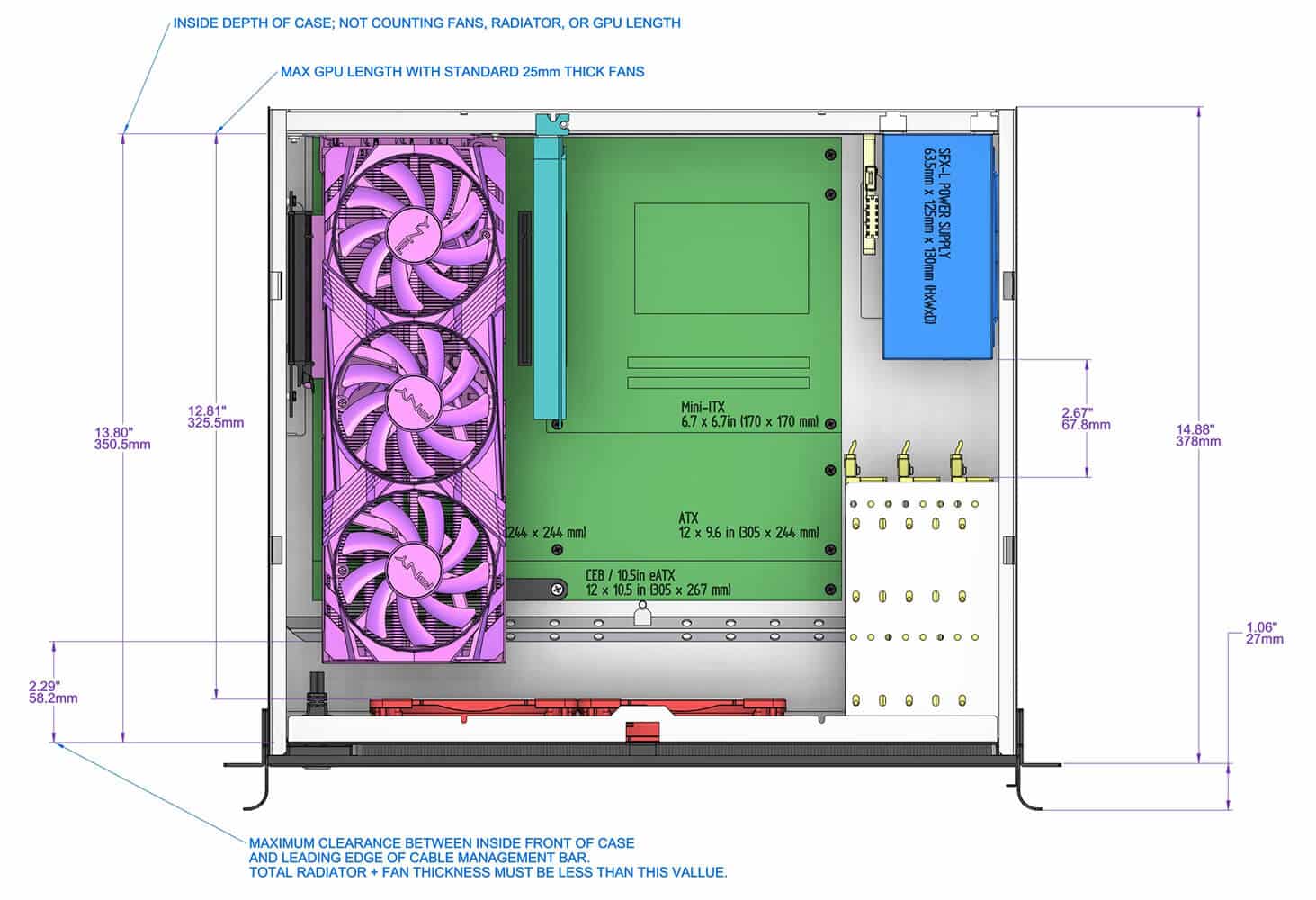

| GPU / PCIe Cards | 3x horizontal slot cutouts with one PCIe 4.0 16x riser for large 3-slot GPU
1x full height PCIe card slot cutout
|
| Storage | 1x 2.5″ SSD next to SFX power supply

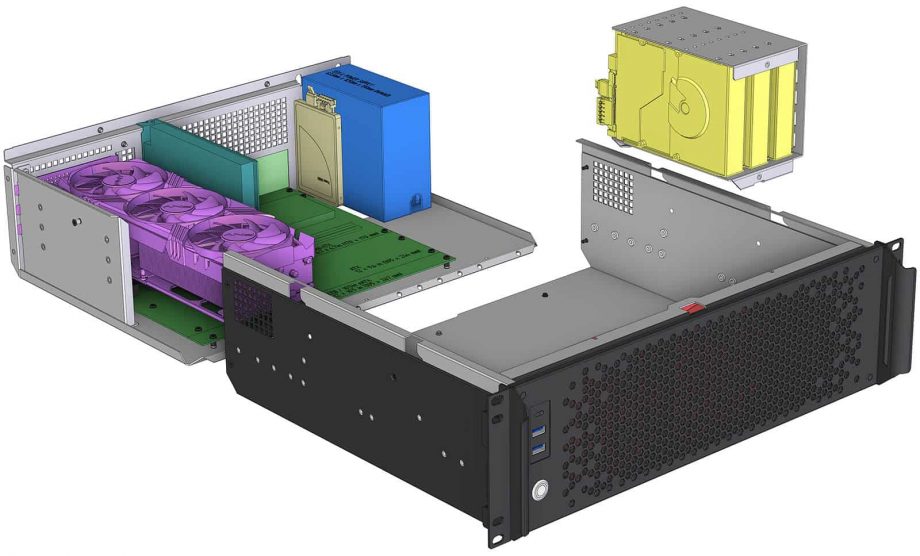

Internal mounting bracket with configuration options for: 3x 3.5″ HDD or 8x 2.5″ SSD or 2x 3.5″ HDD and 3x 2.5″ SSD or 1x 3.5″ HDD and 5x 2.5″ SSD Sliger recommends use of M.2/NVMe and PCIe based storage on motherboard |
| Power Supply | SFX or SFX-L |
| Front Panel I/O | 2x USB 3.0 Type A to 19-Pin Motherboard Header + 1x USB 3.1 Type C 10Gbps to type-E header |
| Material and Finish | galvanized steel + aluminium, powder coating |
| Case Dimensions (DxWxH) | 378mm x 432mm x 132,5mm |
| Compatible Rack Rails | Sliger PM-Series Ball Bearing Slides |
| Rev Control | 18.04.2022 – 1.0 Initial release |
| Scope of delivery | Computer case, mounting hardware, 2x USB 3.0 type A + 1x USB type C 10Gbps front I/O connectors |
| Documents and build recommendations | coming soon |
More details can be found on manufacturer’s website.
