Description

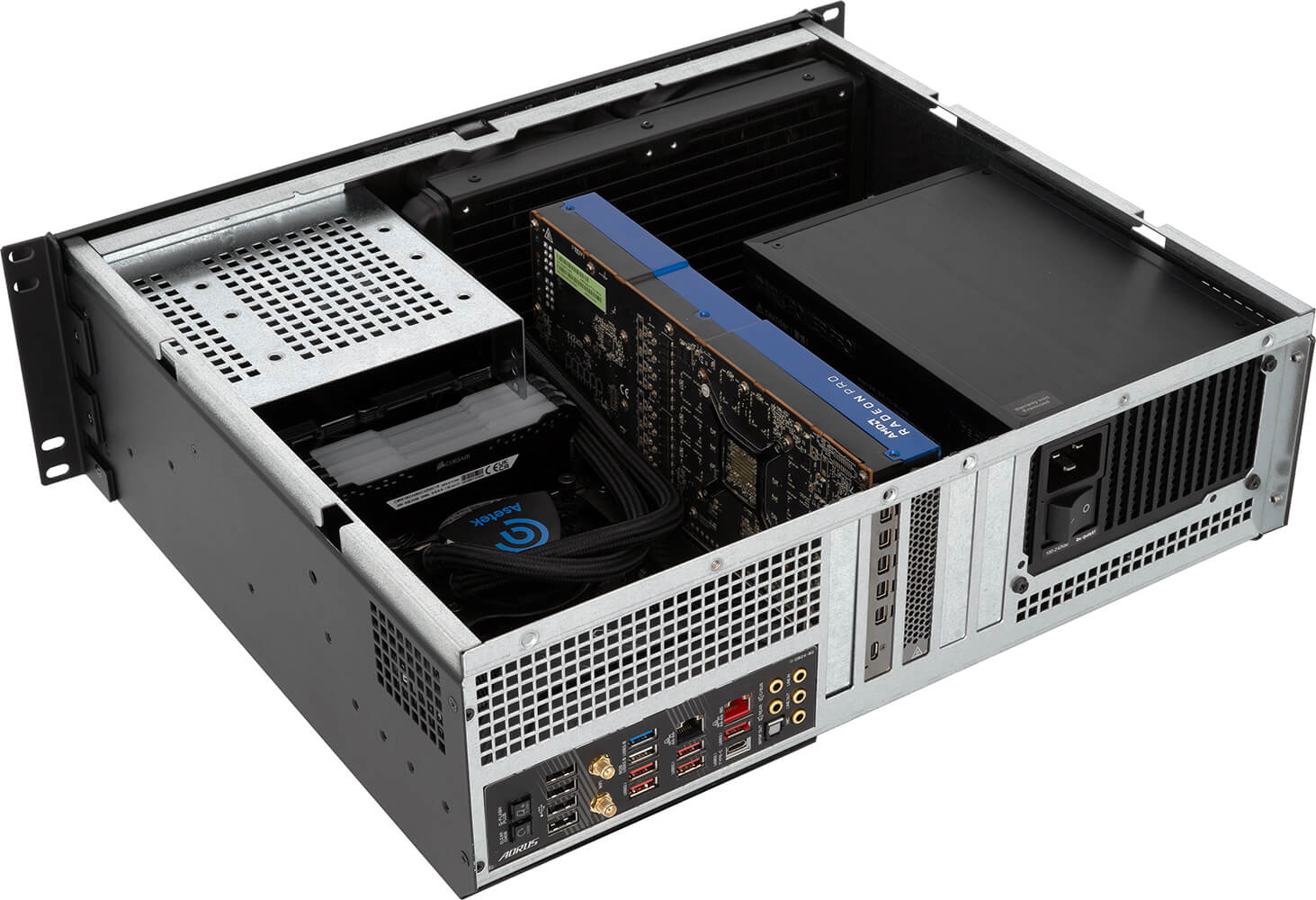

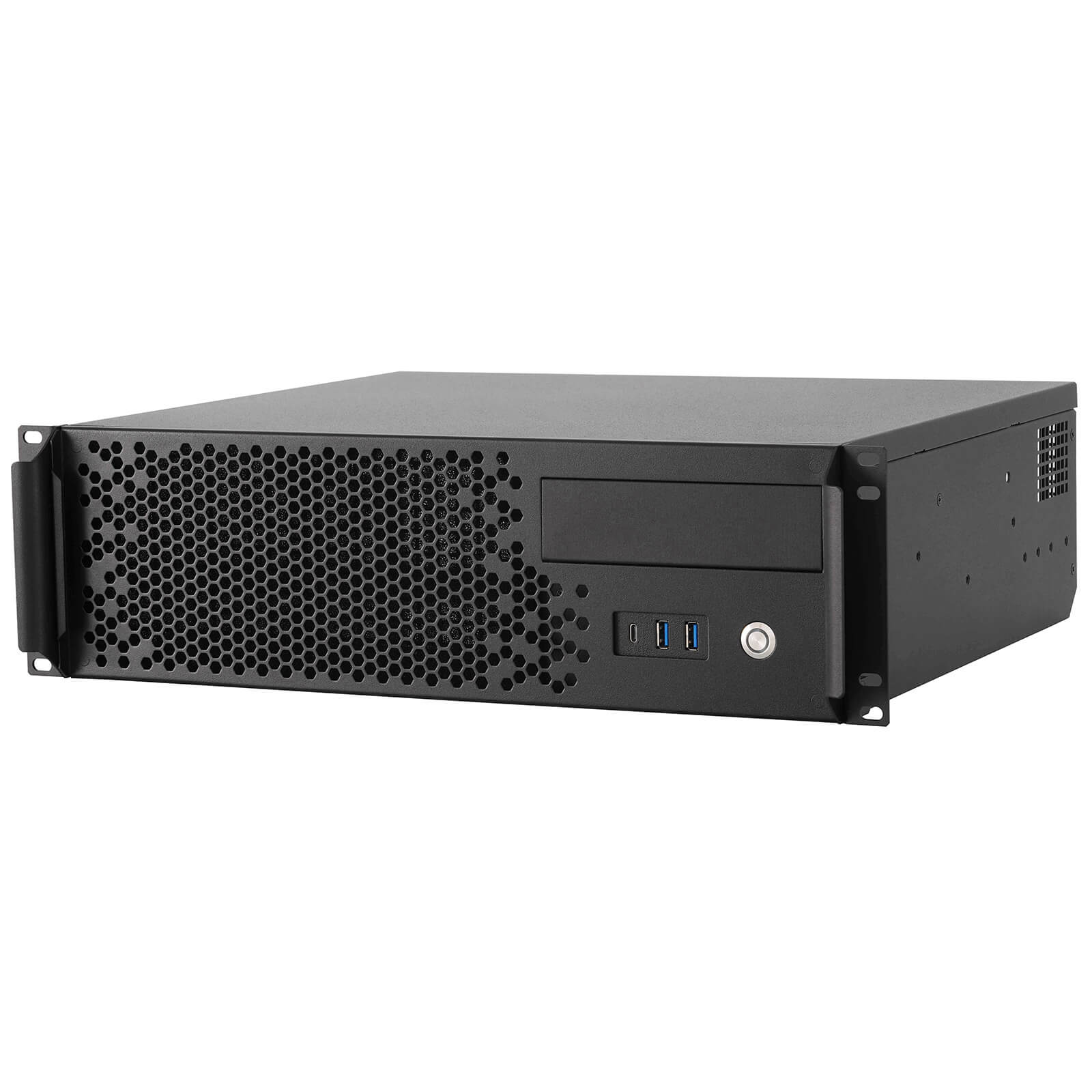

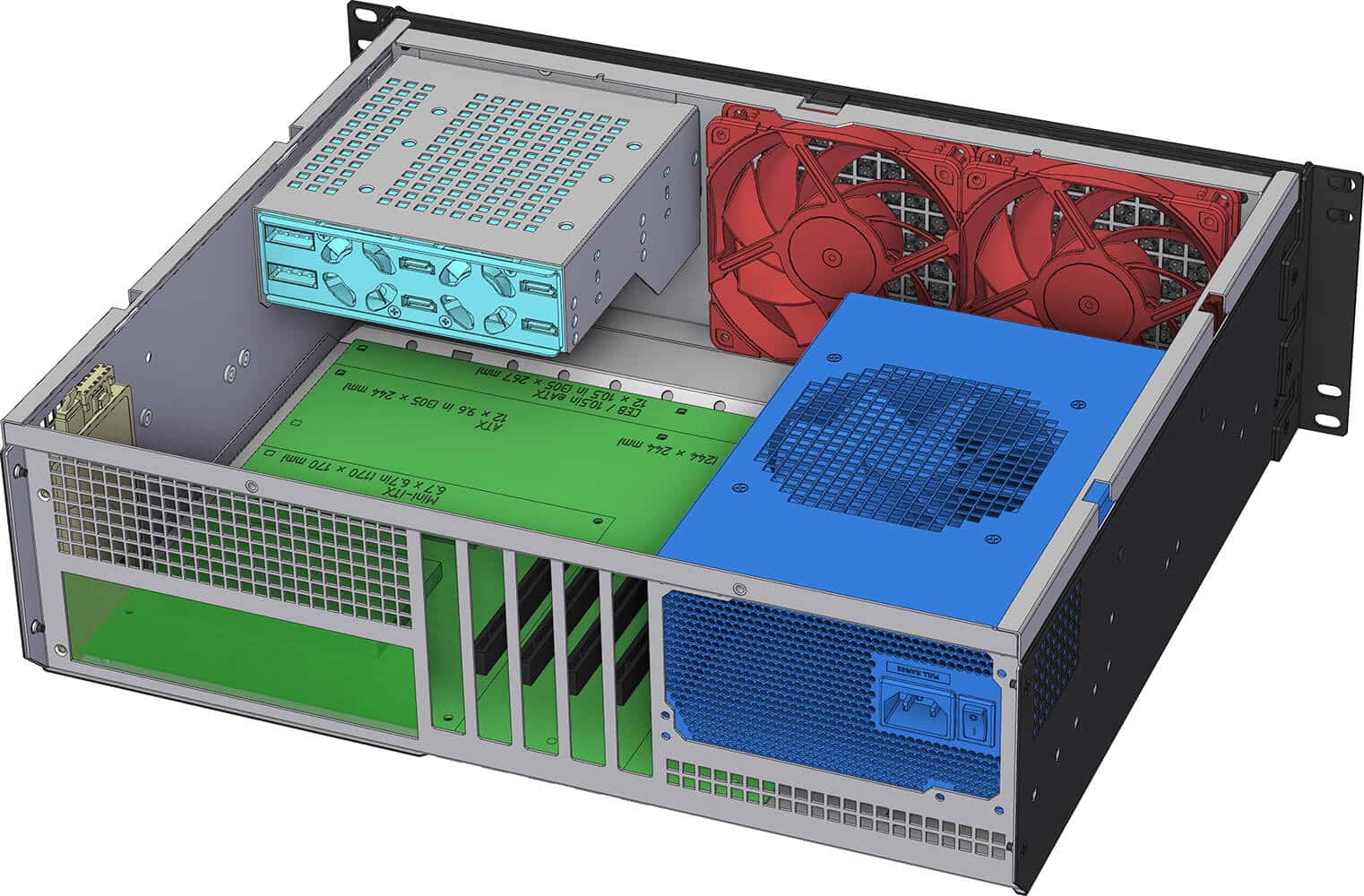

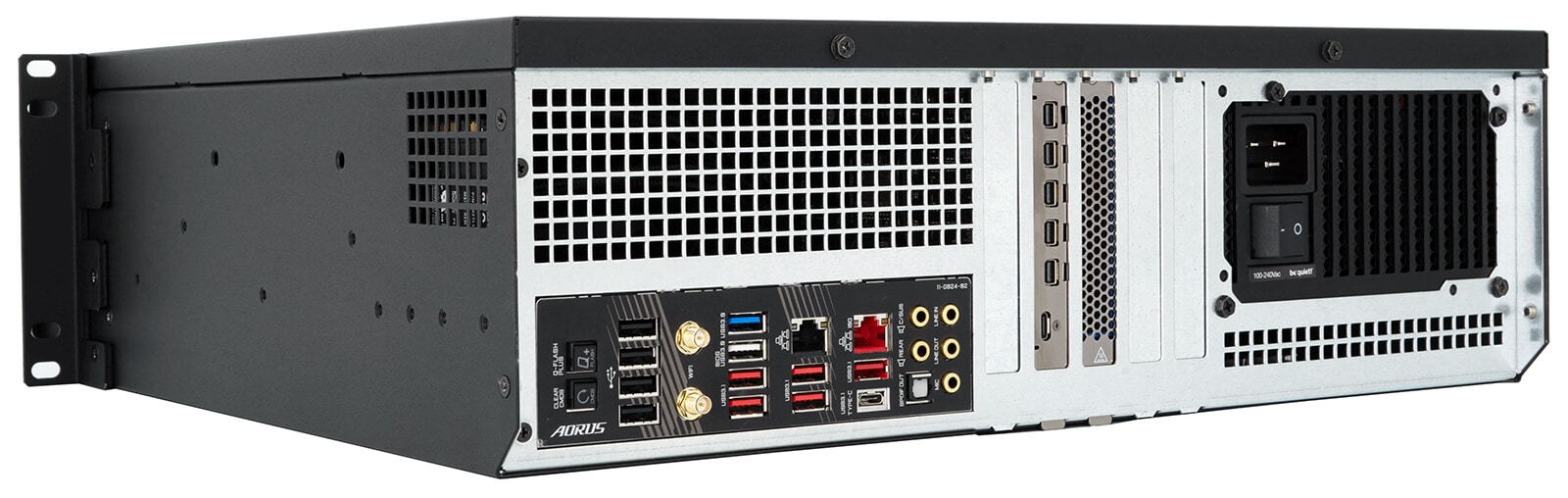

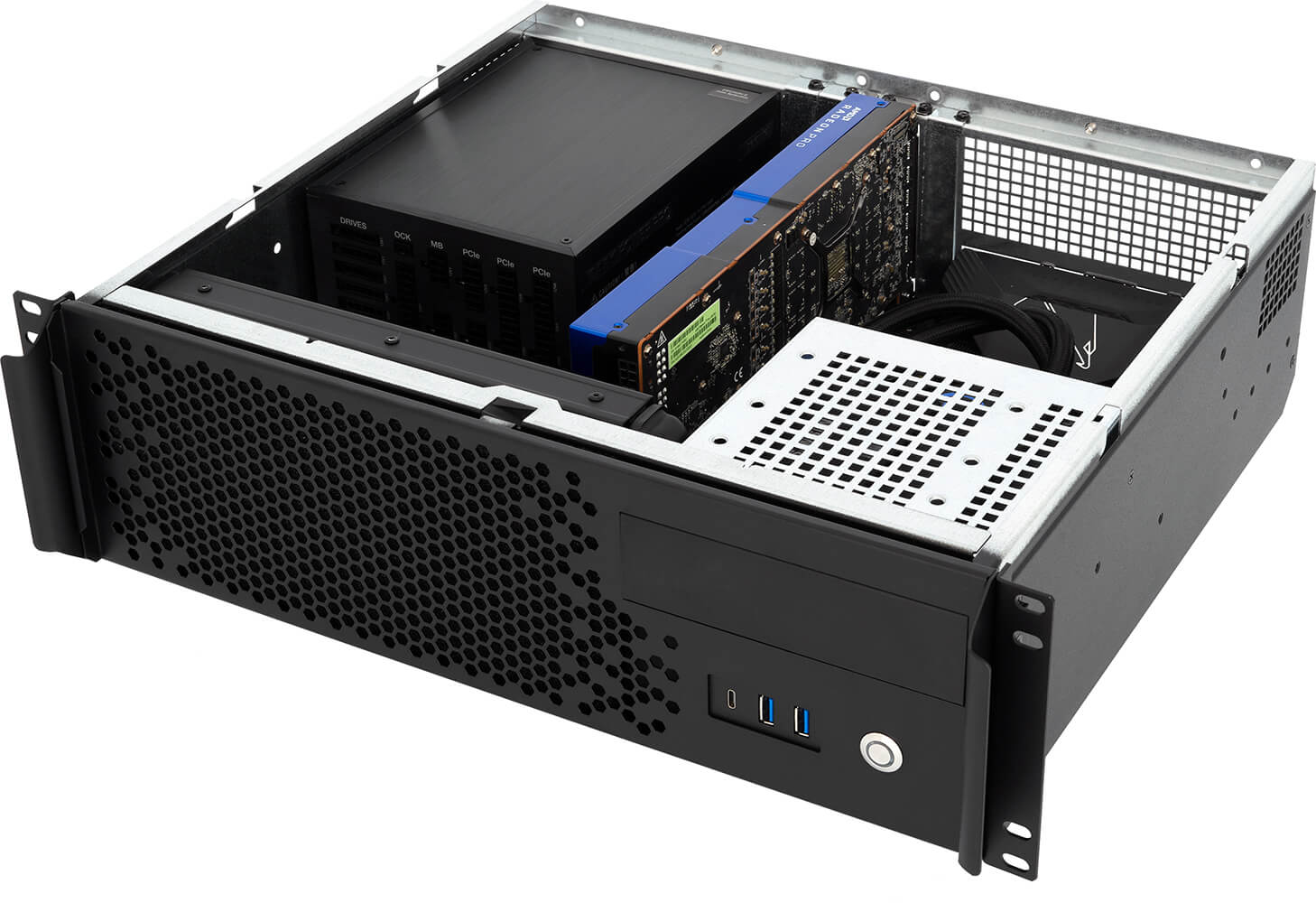

Sliger CX3152i 3U rackmount chassis with 15″ depth
- support for ATX/EATX/Micro-ATX/Flex-ATX/Mini-ITX motherboards
- 5x full-height PCIe card slots
- 1x 5.25″ bay for your hot-swap and removable media
- 2x USB 3.0 type A + 1x USB type C 10Gbps front I/O
- supports up to 2x 120mm fans or 240mm AIO cooling (available separately)
- up to 112mm tall CPU air coolers
- ATX power supply support
NOTE: AIO Liquid cooling or fans not included and are available for purchase separately depending on your needs. Check our Cooling and Ventilation section.
Specifications

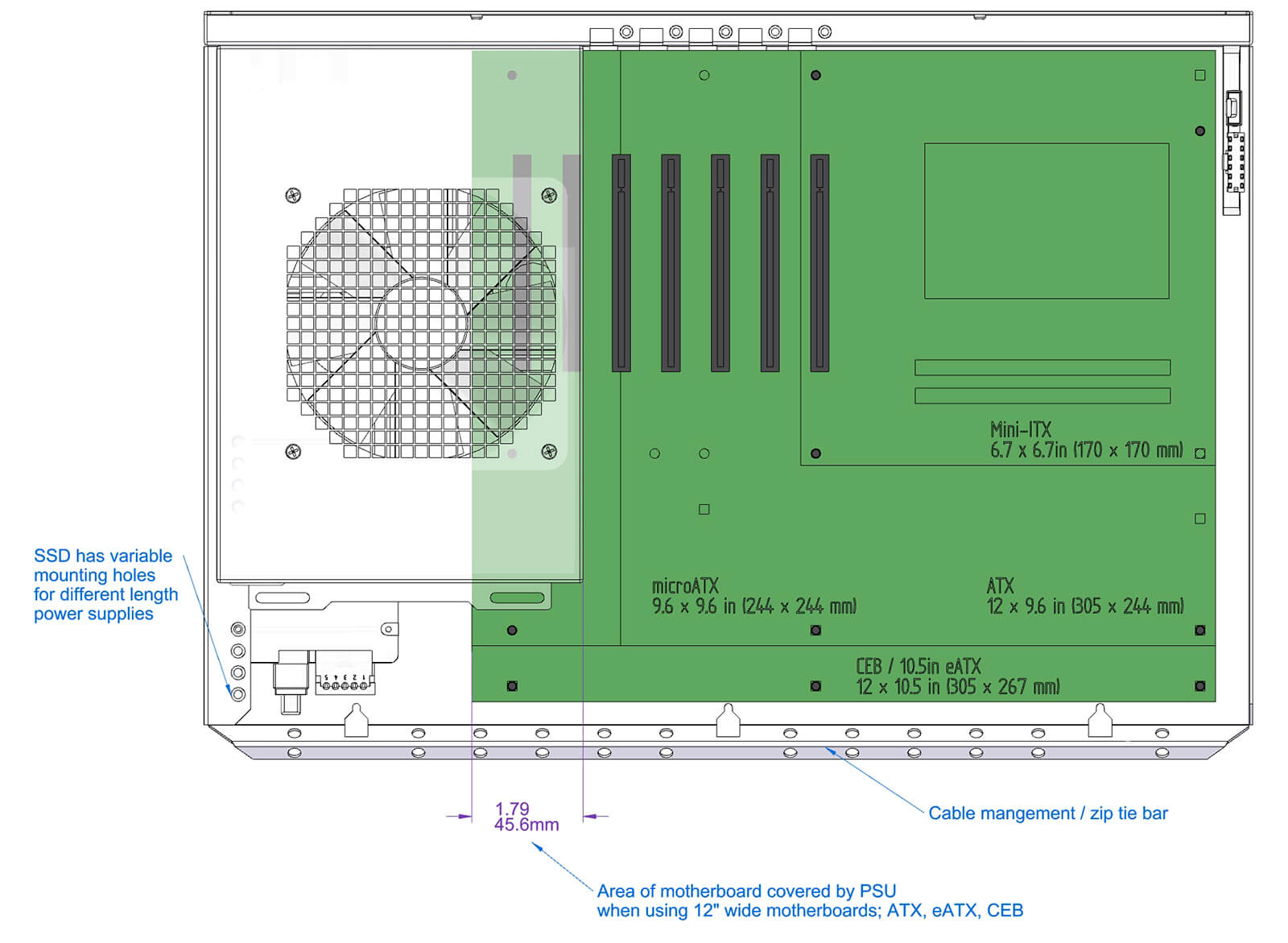

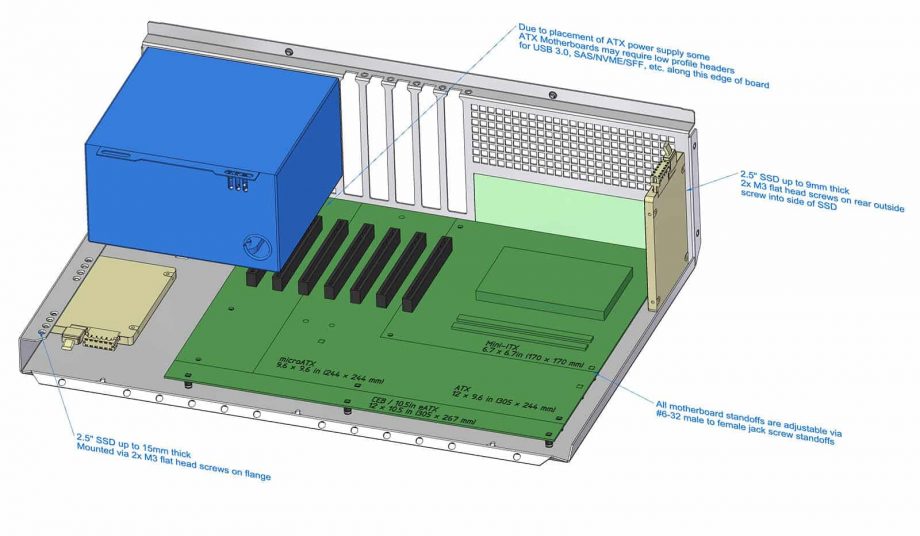

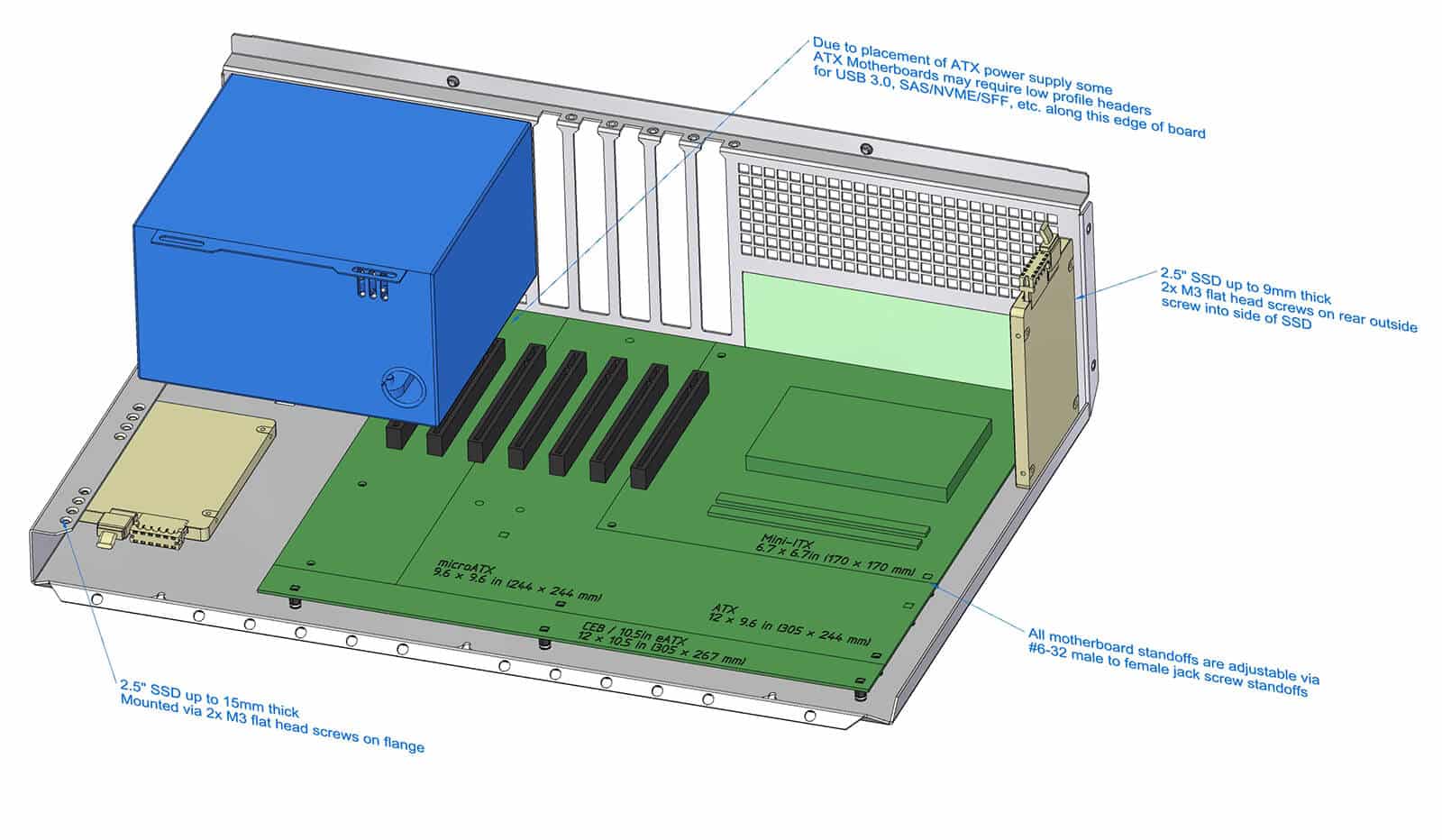

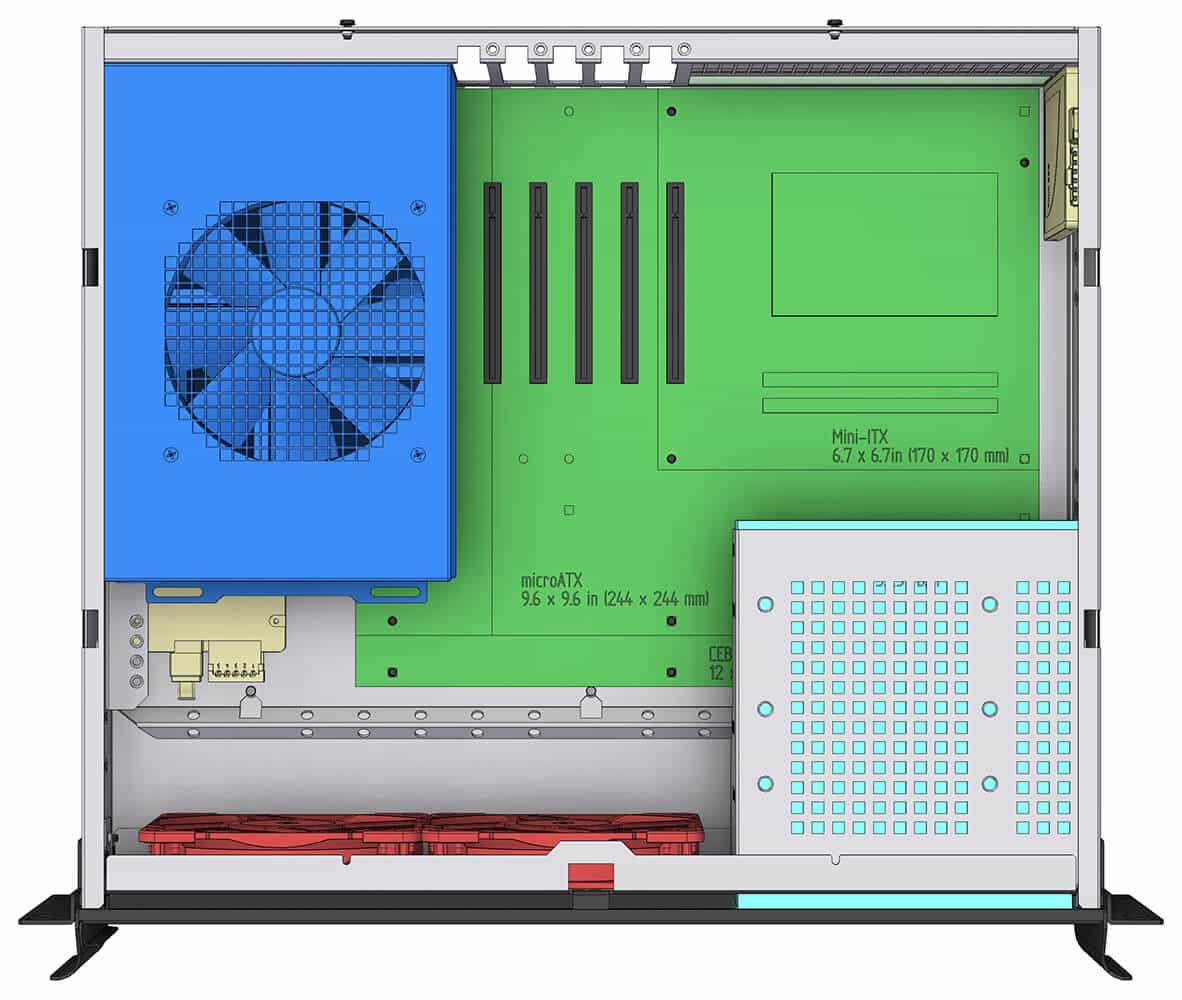

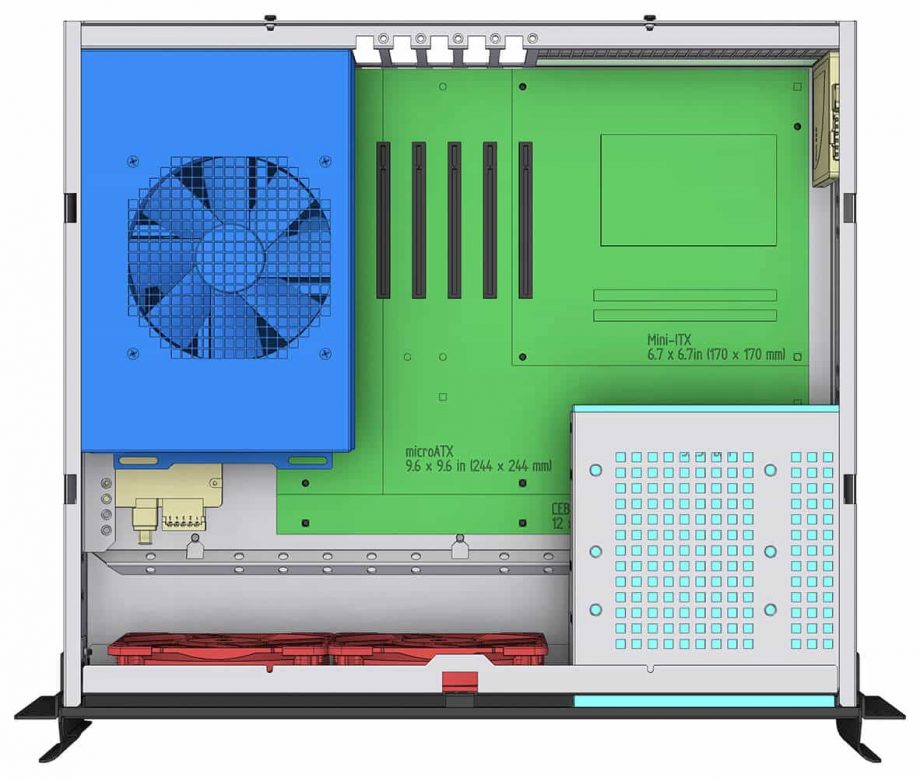

| Motherboard support | EATX (L x W: 305 x 267mm) ATX (L x W: 305 x 244mm)Case ATX power supply overlaps edge of EATX and ATX motherboardsThis limits EATX and ATX motherboards to 5x PCIe slotsAdditionally, some low profile adapters for USB headers may be required Micro-ATX (L x W: 245 x 245mm) Flex-ATX (L x W: 229 x 191mm) Mini-DTX (L x W: 203 x 170mm) Mini-ITX (L x W: 170 x 170mm) |

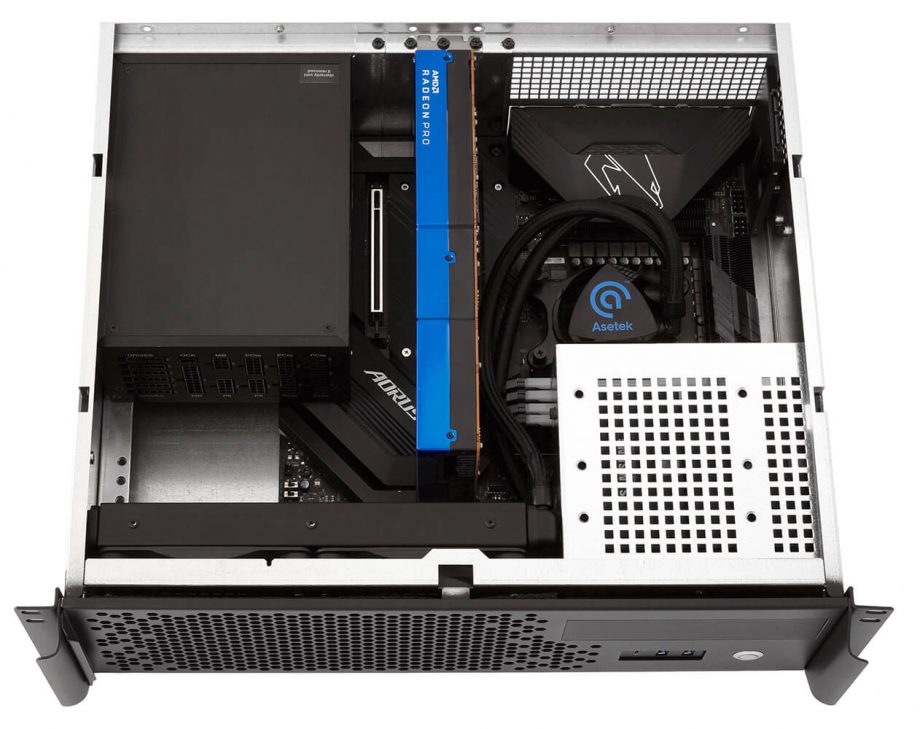

| CPU Liquid Cooling | Single Radiator Options
(Asetek Partner AIOs, EKWB AIOs, and Arctic brand AIOs are supported) 1x 240mm liquid coolers or 1x 120mm liquid coolers (AIOs on left fan and right fan position, middle fan is air only) A complete list of compatible Asetek Partner AIO coolers is available here: Asetek Partner AIOs (EVGA, MSI, NZXT, Asus, Razer, etc.) ATTENTION: Please check your radiator or AIO compatibility before purchasing! These cases are designed around specific Asetek AIO radiator sizes with round edges. Radiators with square design and sharp edges are often incompatible. |

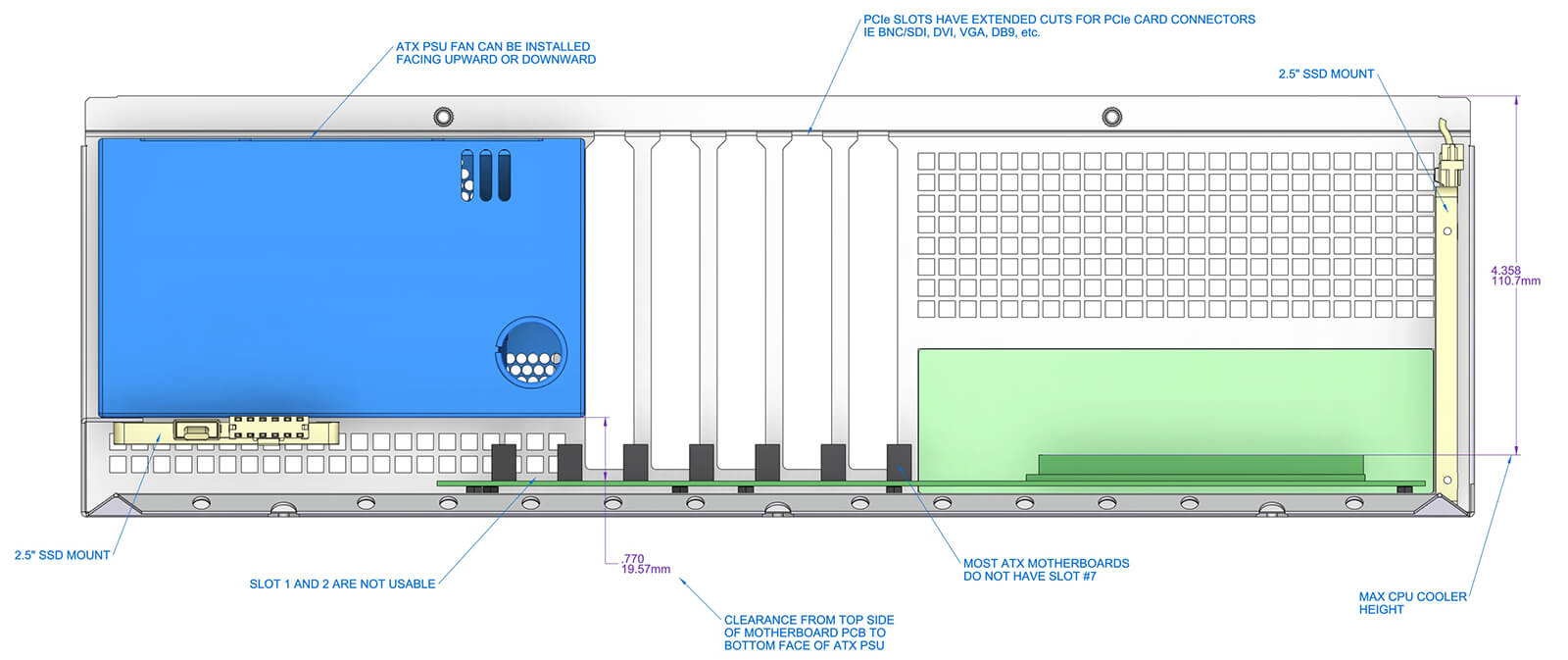

| CPU Air Coolers | up to 110mm tall
Recommended Silent Air Coolers: Noctua NH-D9L |

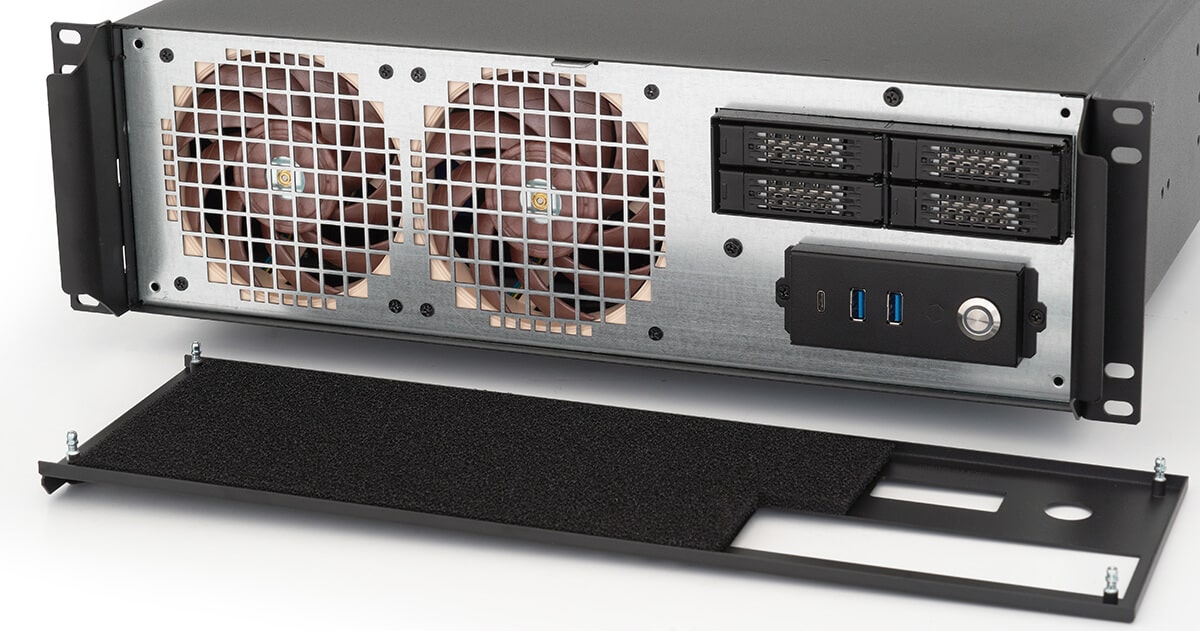

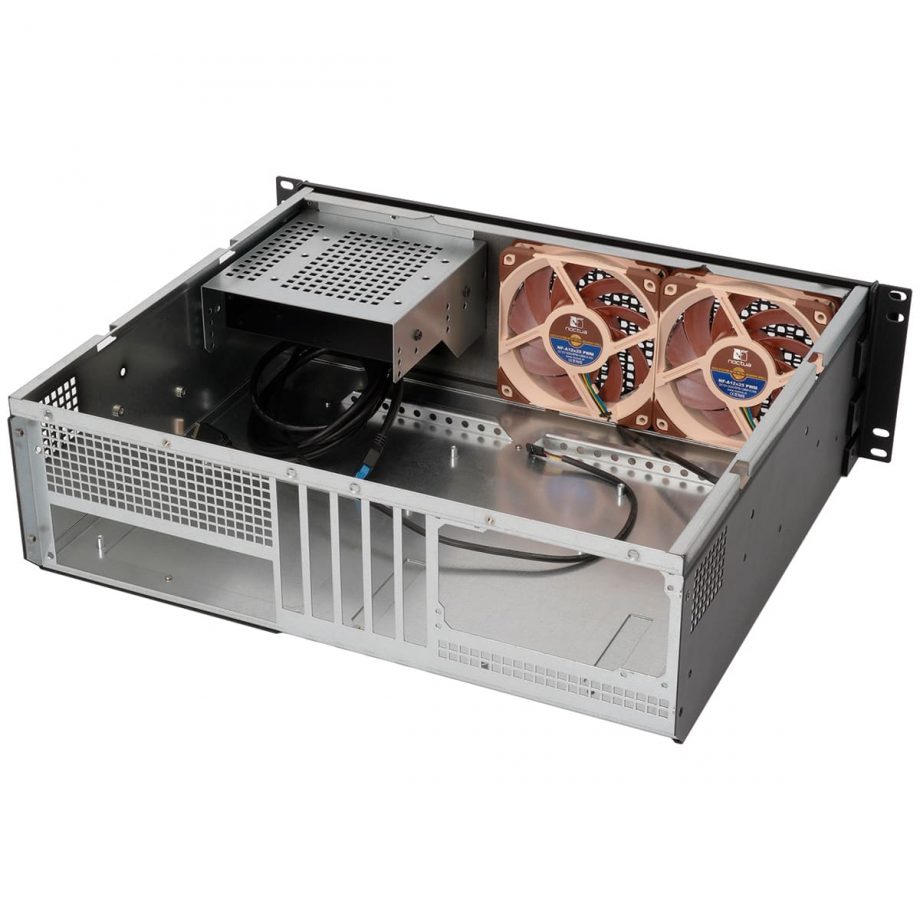

| Fan Mounting | Front:
up to 2x 120mm x 25mm fans (available separately) |
| GPU / PCIe Cards | 5x full height PCIe card slot cutouts
|
| Storage | 1x 2.5″ SSD next to motherboard IO shield
1x 2.5″ SSD under ATX power supply 1x 2.5″ SSD under 5.25″ bay 1x 5.25″ bay filler blank provides mounting for 2x 2.5″ SSD and 1x 3.5″ HDD Sliger recommends use of M.2/NVMe and PCIe based storage on motherboard |
| Power Supply | ATX

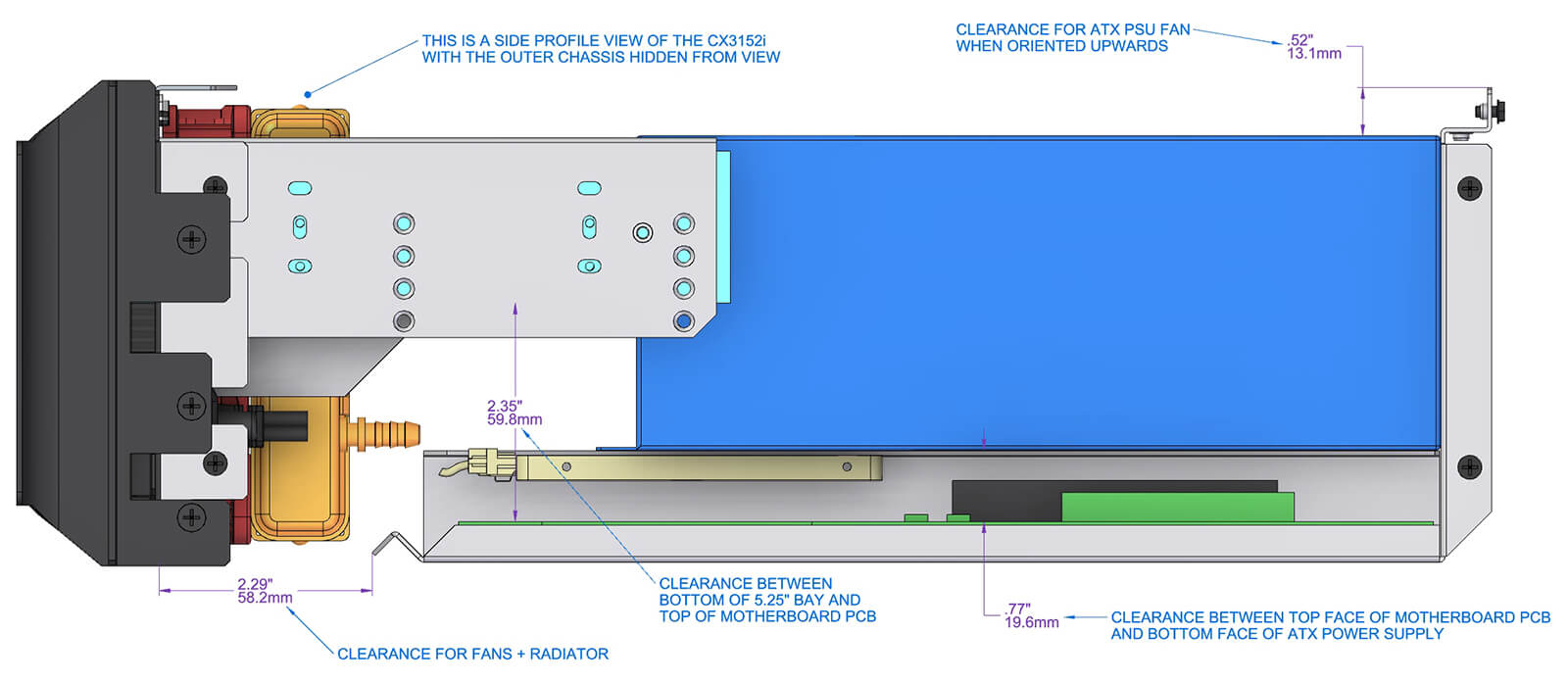

Max Length: 270mm Power supply overlaps edge of motherboard, some low profile adapters for USB headers may be required |
| Front Panel I/O | 2x USB 3.0 Type A to 19-Pin Motherboard Header + 1x USB 3.1 Type C 10Gbps to type-E header |
| Material and Finish | galvanized steel + aluminium, powder coating |
| Case Dimensions (DxWxH) | 378mm x 432mm x 132,5mm |
| Compatible Rack Rails | Sliger PM-Series Ball Bearing Slides |
| Rev Control | 18.04.2022 – 1.0 Initial release |
| Scope of delivery | Computer case, mounting hardware, 2x USB 3.0 type A + 1x USB type C 10Gbps front I/O connectors |
| Documents and build recommendations | coming soon |
More details can be found on manufacturer’s website.
