Description

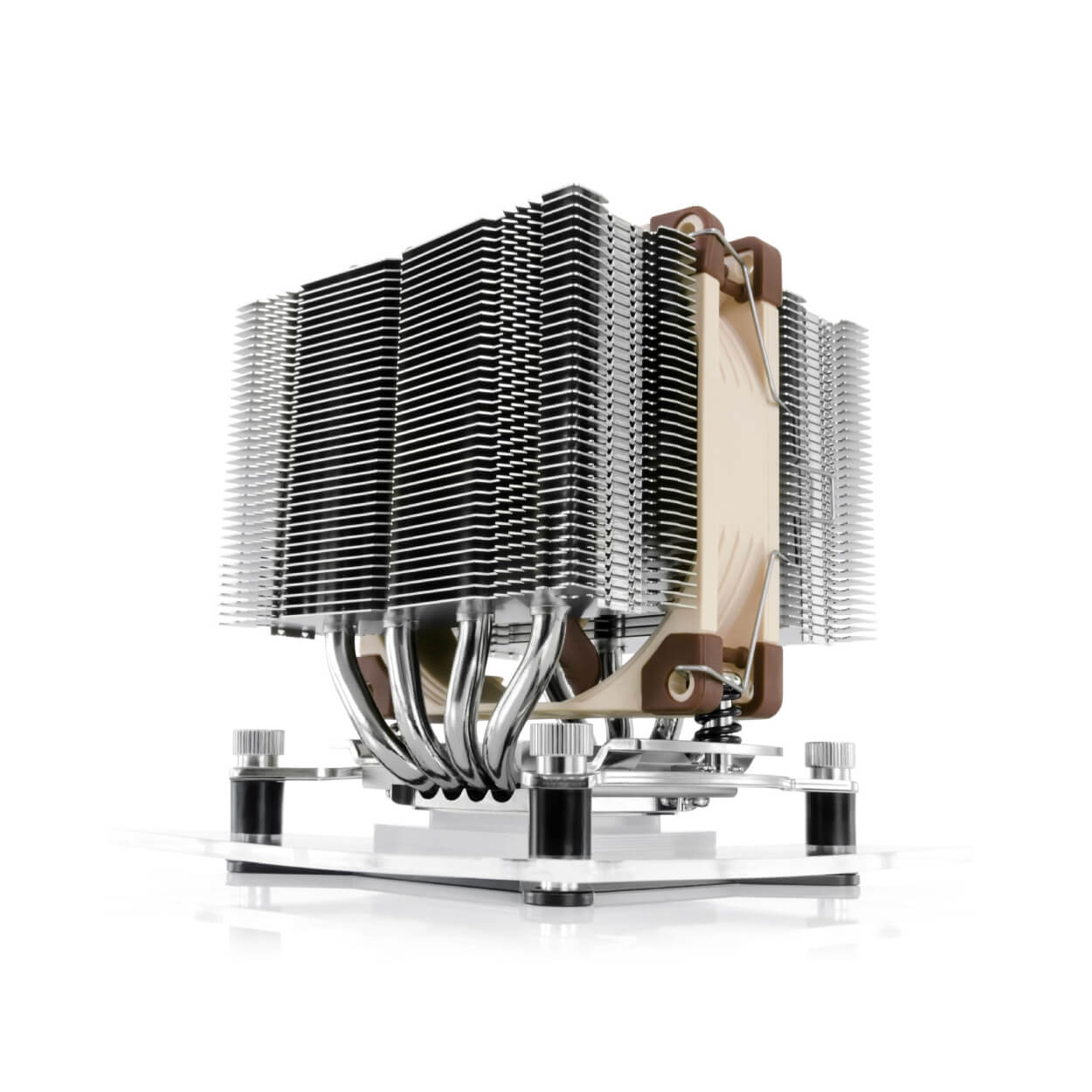

The NH-D9L is a premium grade dual tower CPU cooler that has been designed to provide excellent quiet cooling performance at a height of only 110mm. Its comparably low profile (15mm lower than classic 9cm tower coolers such as the NH-U9S) doesn’t only guarantee full 3U compliance but also makes the NH-D9L ideal for compact HTPC and Small Form Factor cases that have airflow paths parallel to the mainboard. Thanks to its 95x95mm footprint, the NH-D9L clears the RAM and PCIe slots on all Intel based and most AMD based ITX mainboards. The included NF-A9 premium fan supports automatic speed control via PWM for outstanding quietness of operation and a second, optional NF-A9 fan can be added for further improved performance in dual fan mode. Topped off with the trusted, pro-grade SecuFirm2™ multi-socket mounting system, Noctua’s proven NT-H1 thermal compound and full 6 years manufacturer’s warranty, the NH-D9L forms a highly compact premium package for space-restricted applications.
NOTE: The NH-D9L is a highly compact cooler designed for use in 3U server or small form factor cases and HTPC environments. While it provides first-rate performance in its class, it is not suitable for overclocking and or CPUs that create high heat loads. Please consult manufacturer’s CPU compatibility list to find out whether the NH-D9L is recommended for your CPU.
Specifications
| Socket compatibility | Intel LGA1851, LGA1700, LGA1200, LGA1156, LGA1155, LGA1151, LGA1150 and AMD AM5, AM4 |
| Size (HxWxD – no fan) | 110x95x95 mm |
| Size (HxWxD – with fan) | 110x95x95mm |
| Material | Copper (base and heat-pipes), aluminium (cooling fins), soldered joints & nickel plating |
| Fan compatibility | 92x92x14mm, 92x92x25mm |
| Fan included | Noctua NF-A9 PWM |
| Max. rotational speed (+/- 10%) | 2000 RPM |
| Min. rotational speed (PWM, +/-20%) | 400 RPM |
| Max. airflow | 78,9 m³/h |
| Max. acoustical noise | 22,8 dB(A) |

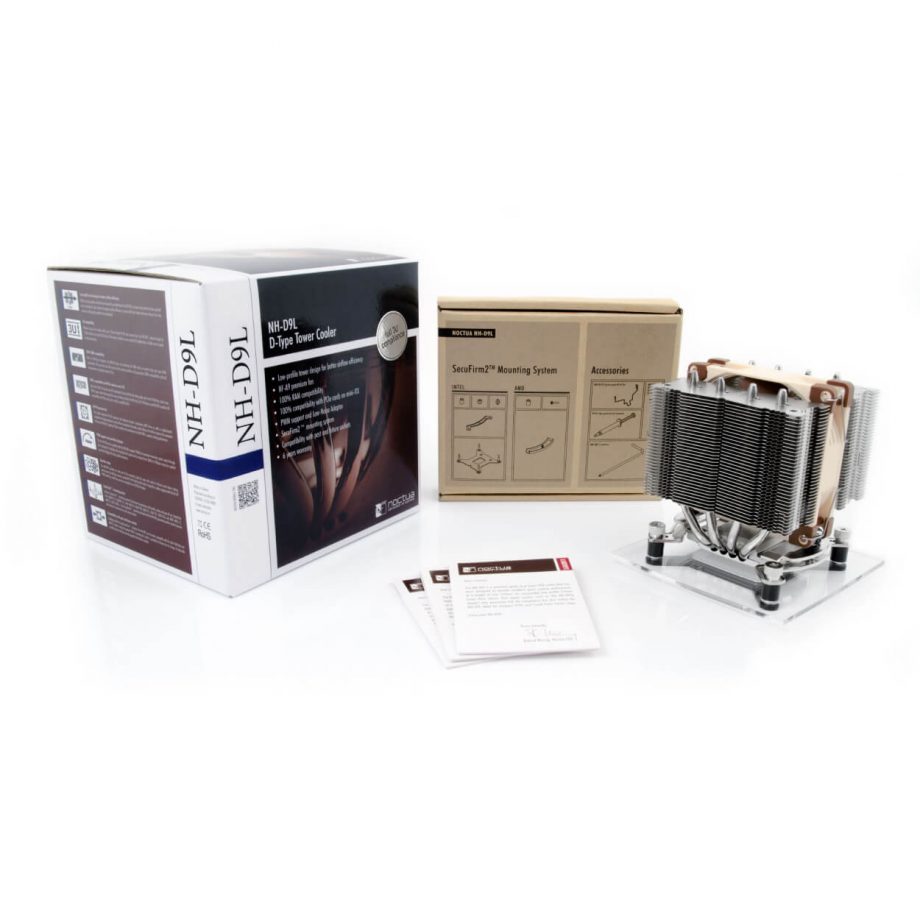

| Package Content | NF-A9 PWM premium fan, NA-RC7 Low-Noise Adaptor (L.N.A.), NT-H1 high-grade thermal compound, SecuFirm2™ Mounting Kit, Fan-clips for second NF-A9, Noctua Metal Case-Badge |
More details can be found on manufacturer’s website.
