Description

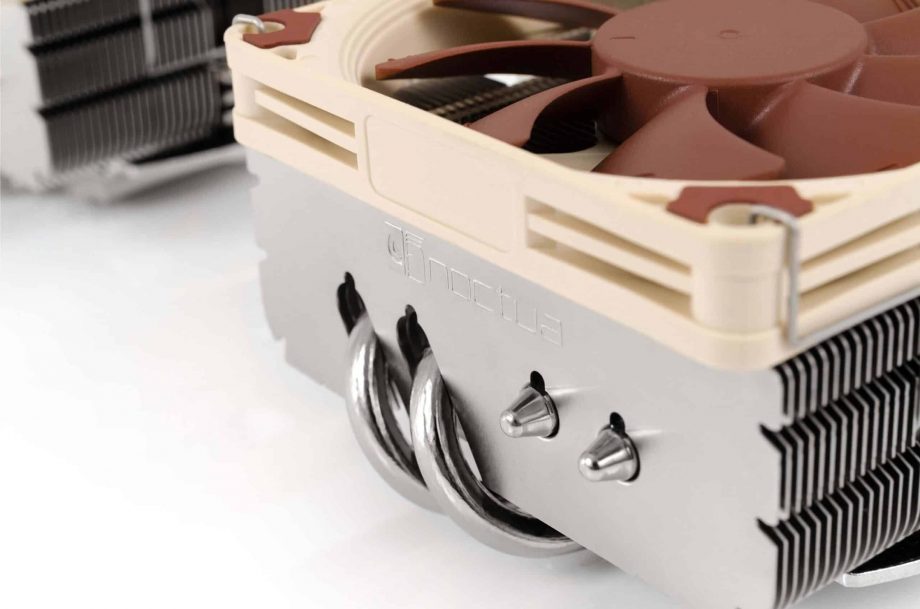

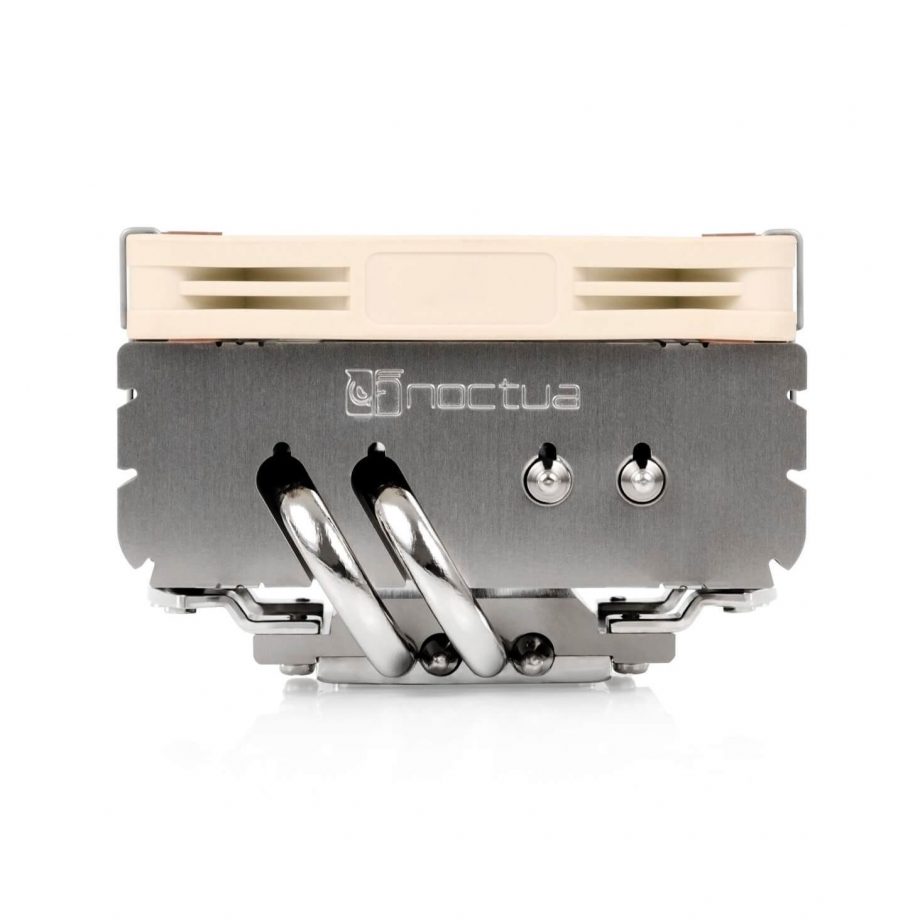

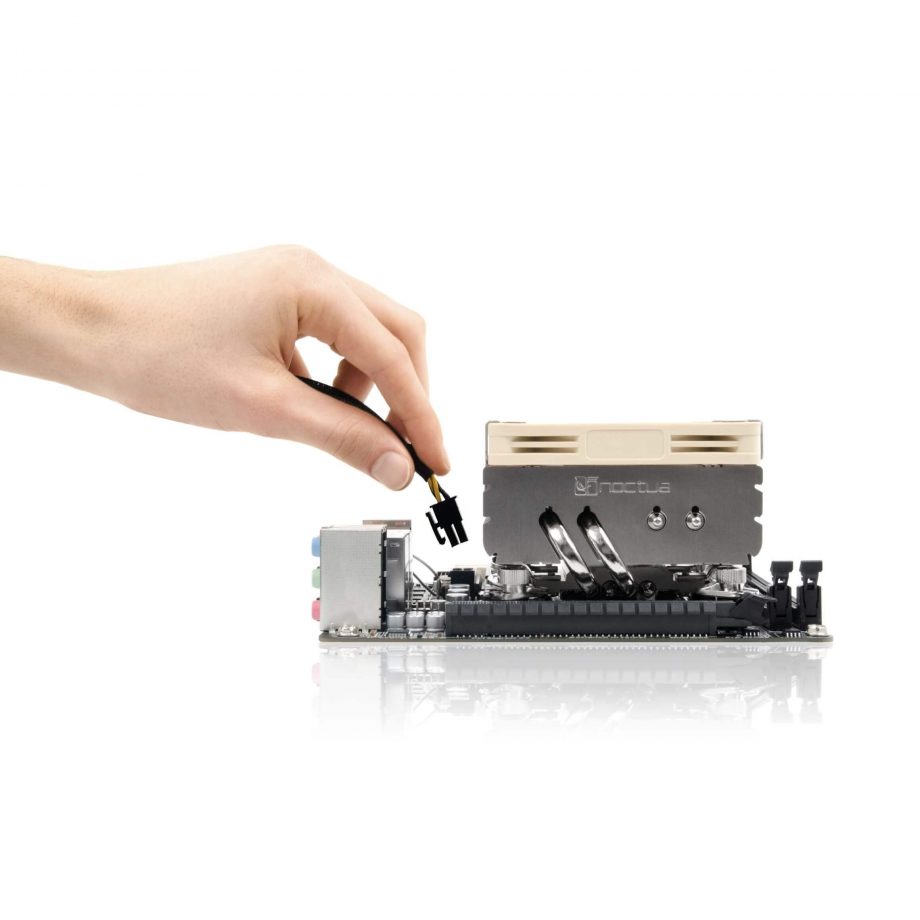

The NH-L9x65 is tall, performance-enhanced version of NOCTUA’s low-profile NH-L9 CPU coolers. With 65mm height with 4 heat pipes and narrow design it has better cooling performance compared to its slim siblings and clears 100% RAM and PCIe sockets. It also allows easy access to near-socket connectors even on Mini-ITX motherboards. With its NF-A9x14 92mm fan with PWM control it is whisper-quiet. In addition with NOCTUA’s NT-H1 thermal compound it is the best choice for small ITX systems with AMD or Intel CPUs.
NOTE: The NH-L9x65 is a highly-compact low-profile quiet cooler designed for use in small form factor cases and HTPC environments. While it provides first rate performance in its class, it is not suitable for overclocking and should be used with care on CPUs with more than 84W TDP (Thermal Design Power). Please consult manufacturer’s CPU compatibility list and TDP guidelines to find out whether the NH-L9x65 is recommended for your CPU.
Specifications
| Socket compatibility | Intel LGA1700 (included since Q4 2021, older coolers require NM-i17xx-MP83), LGA1200, LGA1156, LGA1155, LGA1151, LGA1150, LGA2066, LGA2011-0, LGA2011-3 (Square ILM) & AMD AM4, AM5 (included since 2019, older coolers require NM-AM4) |
| Size (HxWxD – no fan) | 51x95x95 mm |
| Size (HxWxD – with fan) | 65x95x95 mm |
| Material | Copper (base and heat-pipes), aluminium (cooling fins), soldered joints & nickel plating |
| Fan compatibility | 92x92x14, 92x92x25 |
| Fan included | Noctua NF-A9x14 PWM |
| Max. rotational speed (+/- 10%) | 2500 RPM |
| Min. rotational speed (PWM, +/-20%) | 600 RPM |
| Max. airflow | 57,5 m³/h |
| Max. acoustical noise | 23,6 dB(A) |

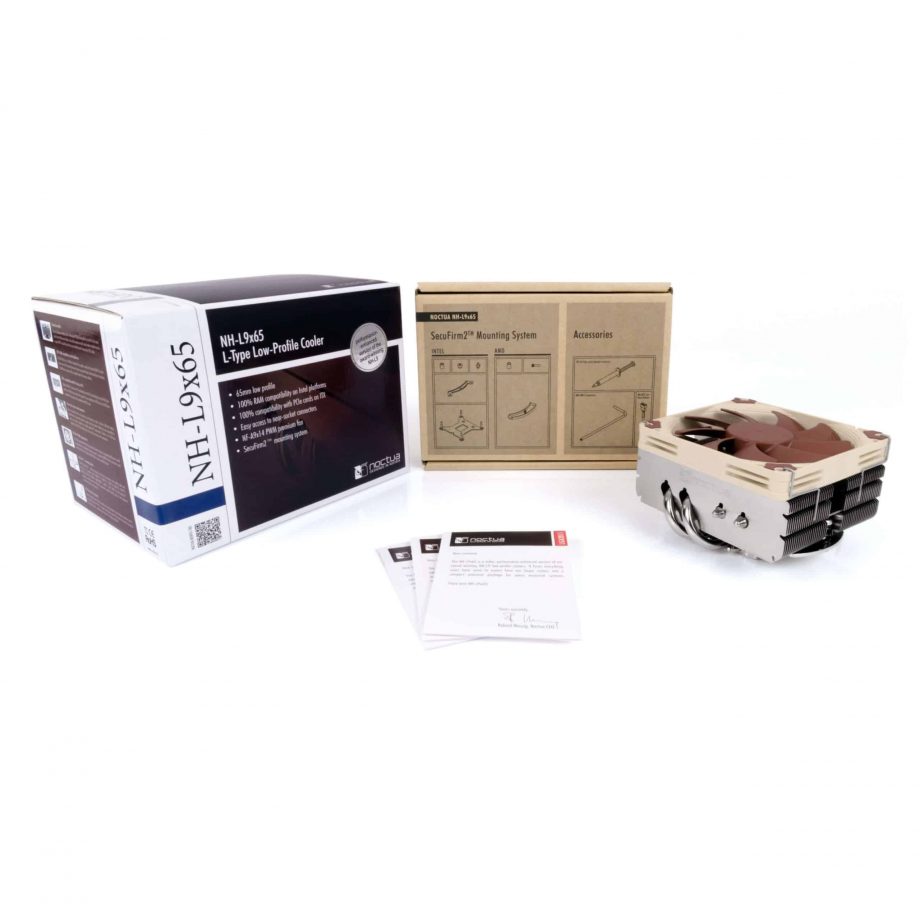

| Package Content | NF-A9x14 PWM premium fan, Low-Noise Adapter (L.N.A.), NT-H1 high-grade thermal compound, SecuFirm2™ Mounting Kit, Noctua Metal Case-Badge |
More details can be found on manufacturer’s website.
