Description

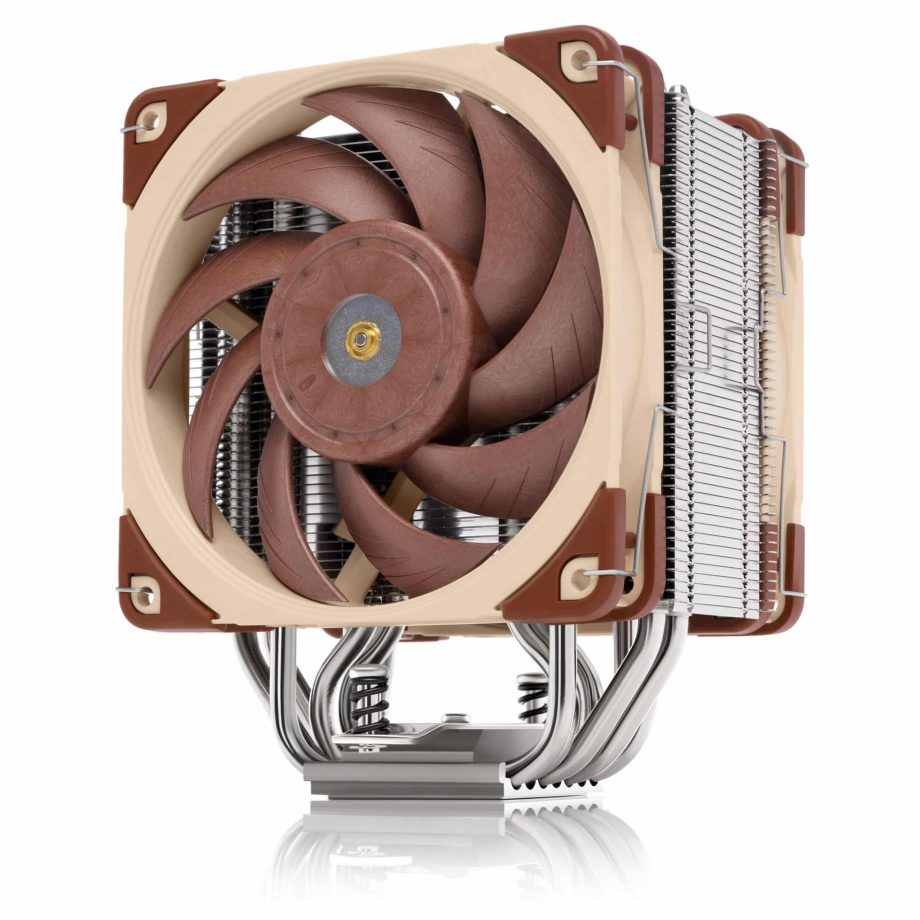

The NH-U12A is the latest version of Noctua’s excellent NH-U12 series of 120mm tower CPU coolers. Its design guarantees excellent compatibility with tall RAM modules. Combined with dual high-performance NF-A12x25 fan with PWM support for fully automatic speed control allow it to provide quiet cooling performance. NF-A12x25 fan even with its smaller size rivals the performance of most 140mm fans on the market. NH-U12A is a complete premium CPU cooler that combines great performance, quiet operation and excellent compatibility.
Specifications
| Socket compatibility | Intel LGA1700 (included since Q4 2021, older coolers require NM-i17xx-MP78), LGA1200, LGA1156, LGA1155, LGA1151, LGA1150, LGA2066, LGA2011 & AMD AM4, AM5 |
| Size (HxWxD – no fan) | 158x125x58 mm |
| Size (HxWxD – with fan) | 158x125x125 mm |
| Material | Copper (base and heat-pipes), aluminium (cooling fins), soldered joints & nickel plating |
| Fan compatibility | 120x120x25 |
| Fan included | Noctua NF-A12x25 PWM |
| Max. rotational speed (+/- 10%) | 2000 RPM |
| Min. rotational speed (PWM, +/-20%) | 450 RPM |
| Max. airflow | 84,50 m³/h |
| Max. acoustical noise | 22, 6dB(A) |

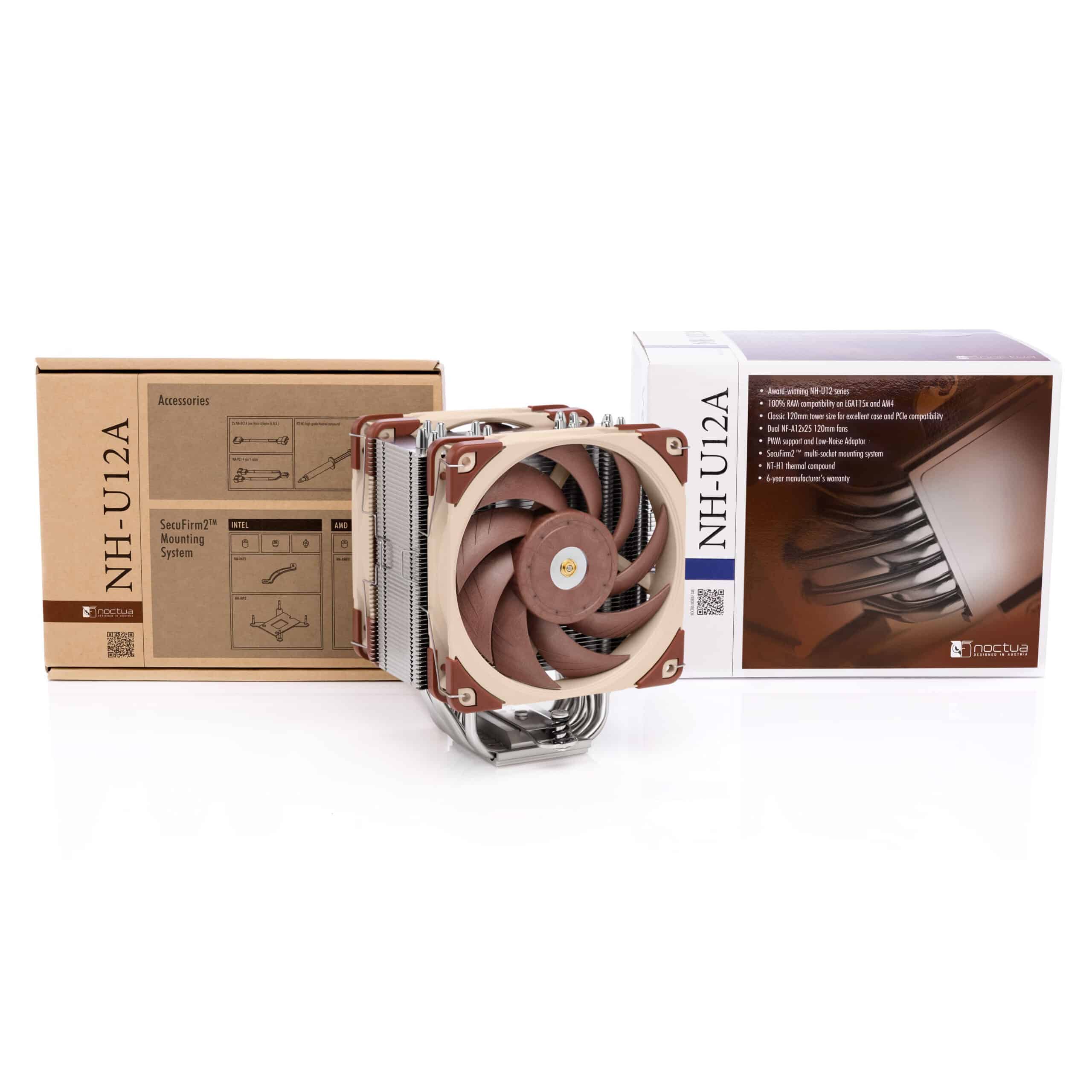

| Package Content | 2x Noctua NF-A12x25 PWM, 2x Low-Noise Adapter (L.N.A.), NT-H1 high-grade thermal compound, 4-pin PWM y-cable, SecuFirm2™ Mounting Kit, Noctua Metal Case-Badge |
More details can be found on manufacturer’s website.
