Description

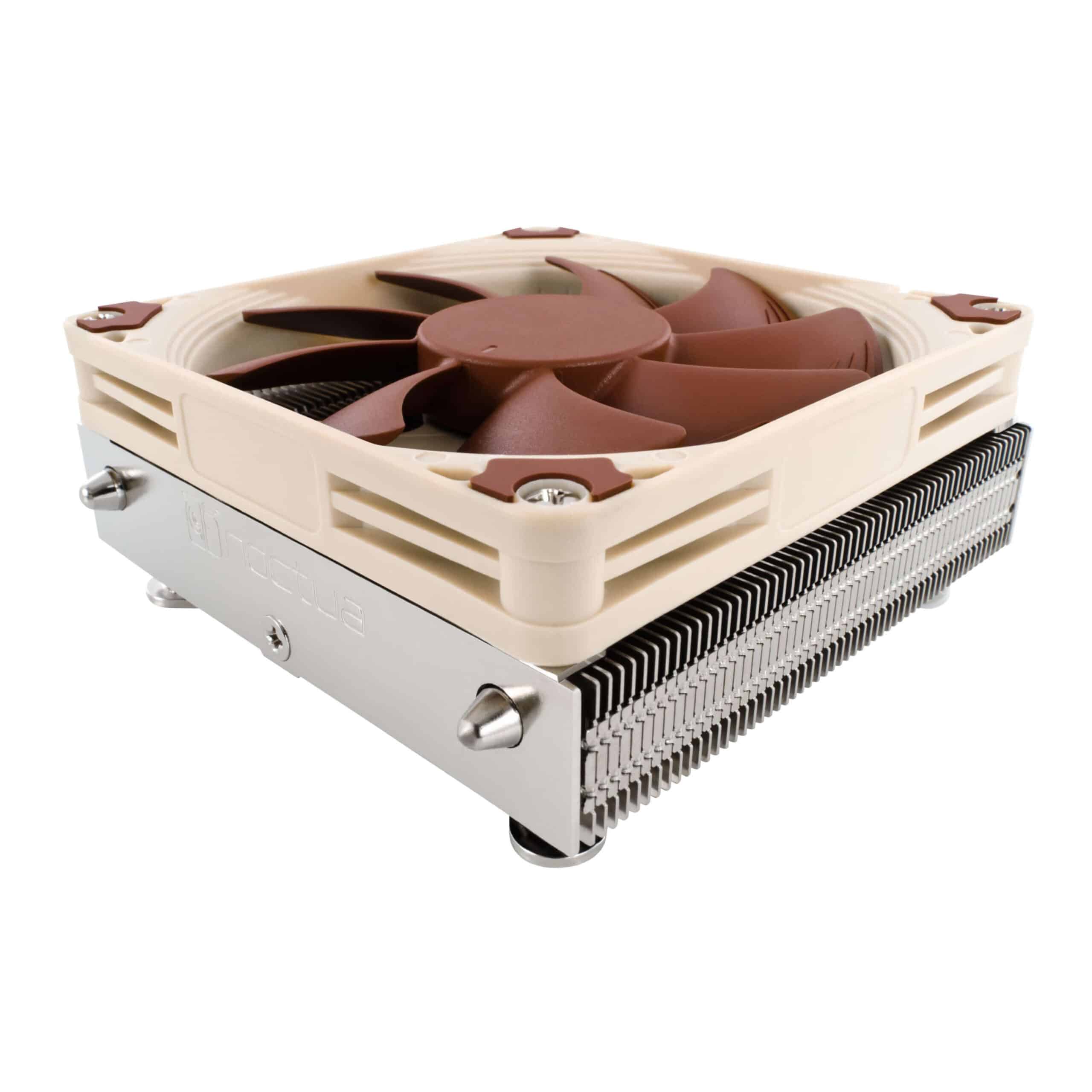

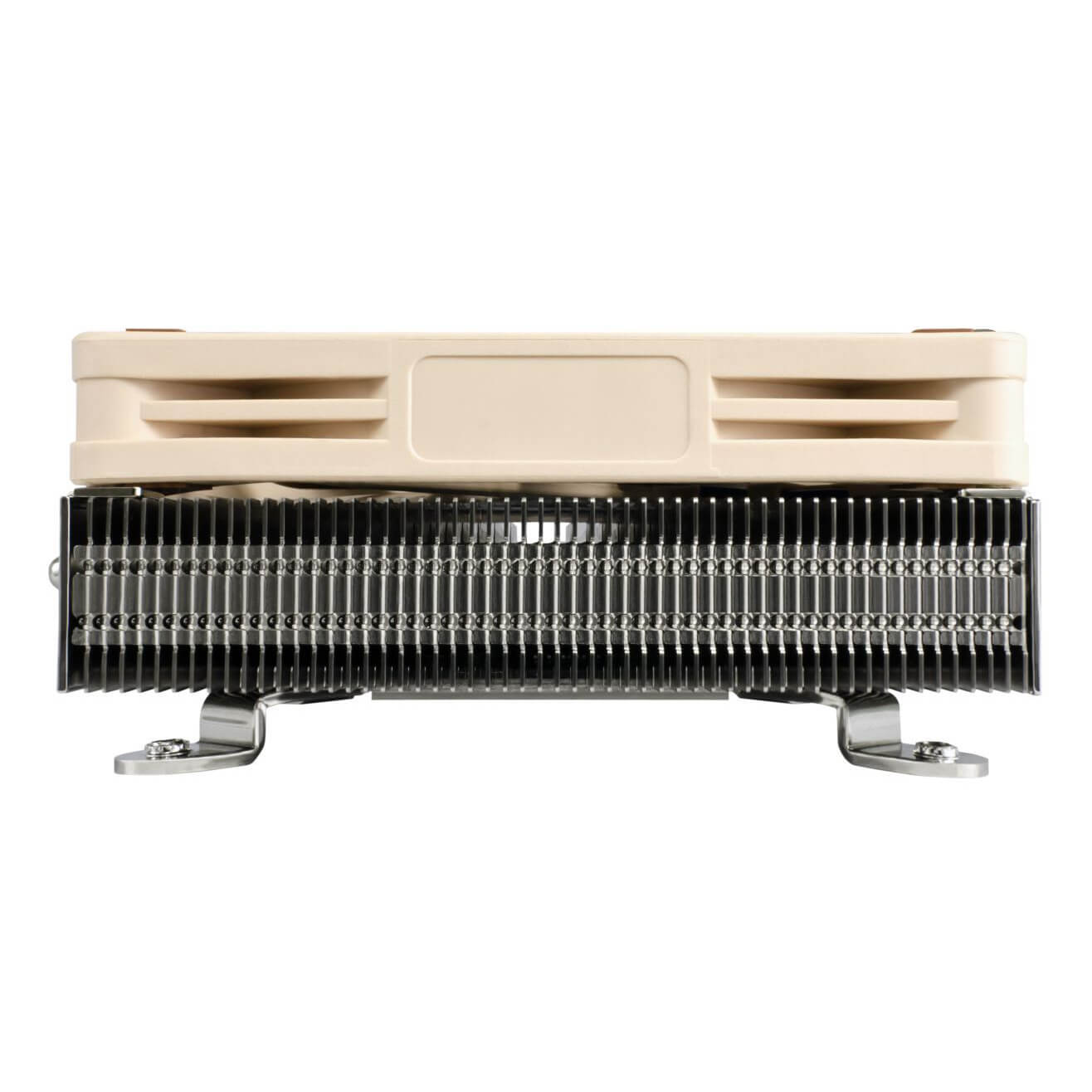

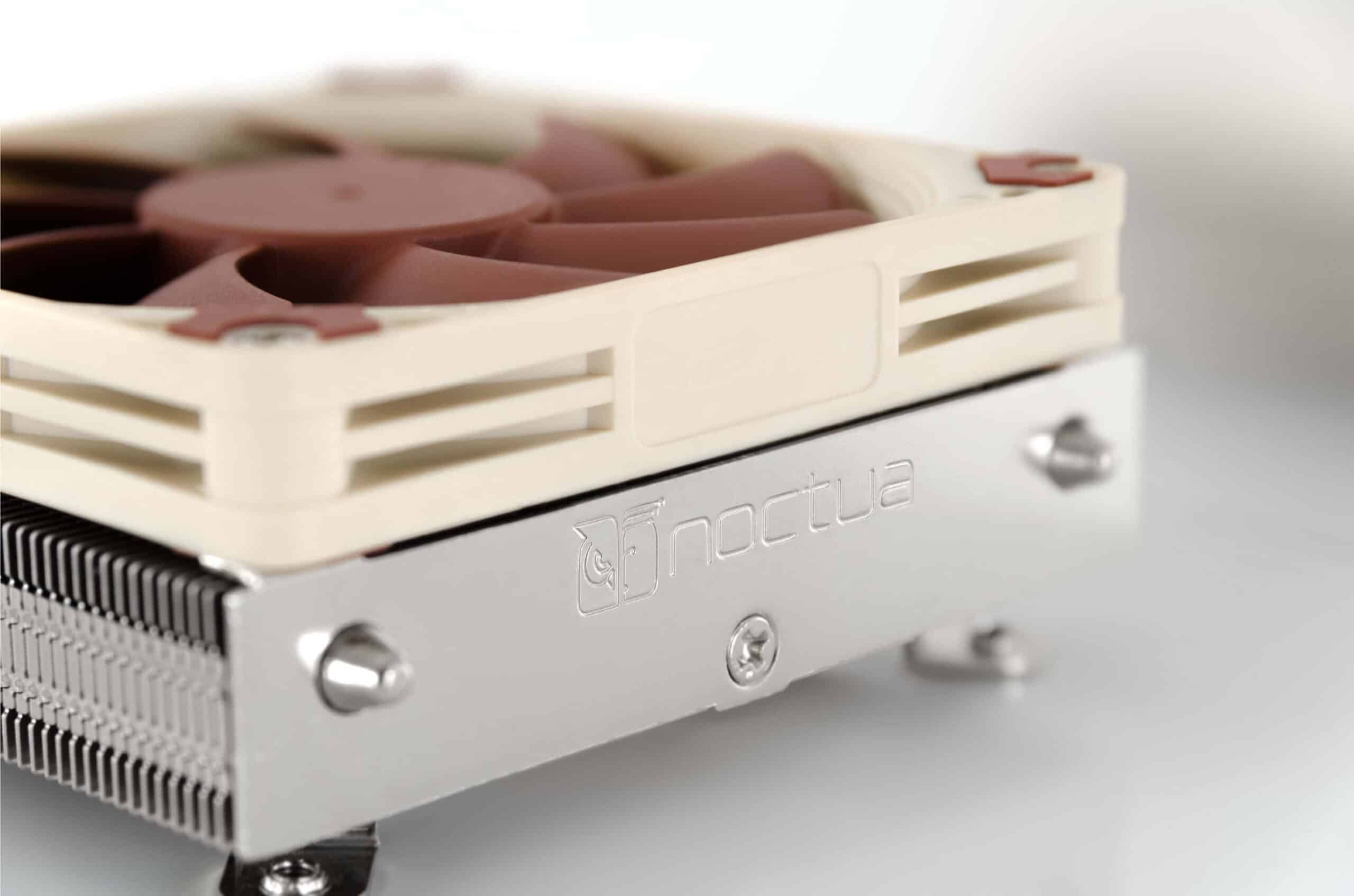

The NH-L9i is NOCTUA’s premium low-profile CPU cooler designed for Intel LGA115x platform. Based on NH-L9 CPU cooler for SFF and HTPC systems. Only 37mm high it is suitable for extremely slim cases. With its narrow design it clears RAM and PCIe sockets and allows easy access to near-socket connectors even on Mini-ITX motherboards. With its NF-A9x14 92mm fan with PWM control it is whisper-quiet. In addition with NOCTUA’s NT-H1 thermal compound it is the best choice for low power ITX system builds with Intel CPUs or APUs.
NOTE: The NH-L9i is a highly compact, quiet low-profile cooler designed for use in small form factor cases and HTPC environments. While it provides first-rate performance in its class, it is not suitable for overclocking and or CPUs that create high heat loads. Please consult manufacturer’s CPU compatibility list to find out whether the NH-L9i is recommended for your CPU.
Specifications
| Socket compatibility | Intel LGA1150, LGA1151, LGA1155, LGA1156, LGA1200, AMD AM4 with NM-AM4-L9aL9i |
| Size (HxWxD – no fan) | 23x95x95 mm |
| Size (HxWxD – with fan) | 37x95x95 mm |
| Material | Copper (base and heat-pipes), aluminium (cooling fins), soldered joints & nickel plating |
| Fan compatibility | 92x92x14mm, 92x92x25mm |
| Fan included |
Noctua NF-A9x14 PWM
|
| Max. rotational speed (+/- 10%) | 2500 RPM |
| Min. rotational speed (PWM, +/-20%) | 600 RPM |
| Max. airflow | 57,5 m³/h |
| Max. acoustical noise | 23,6 dB(A) |

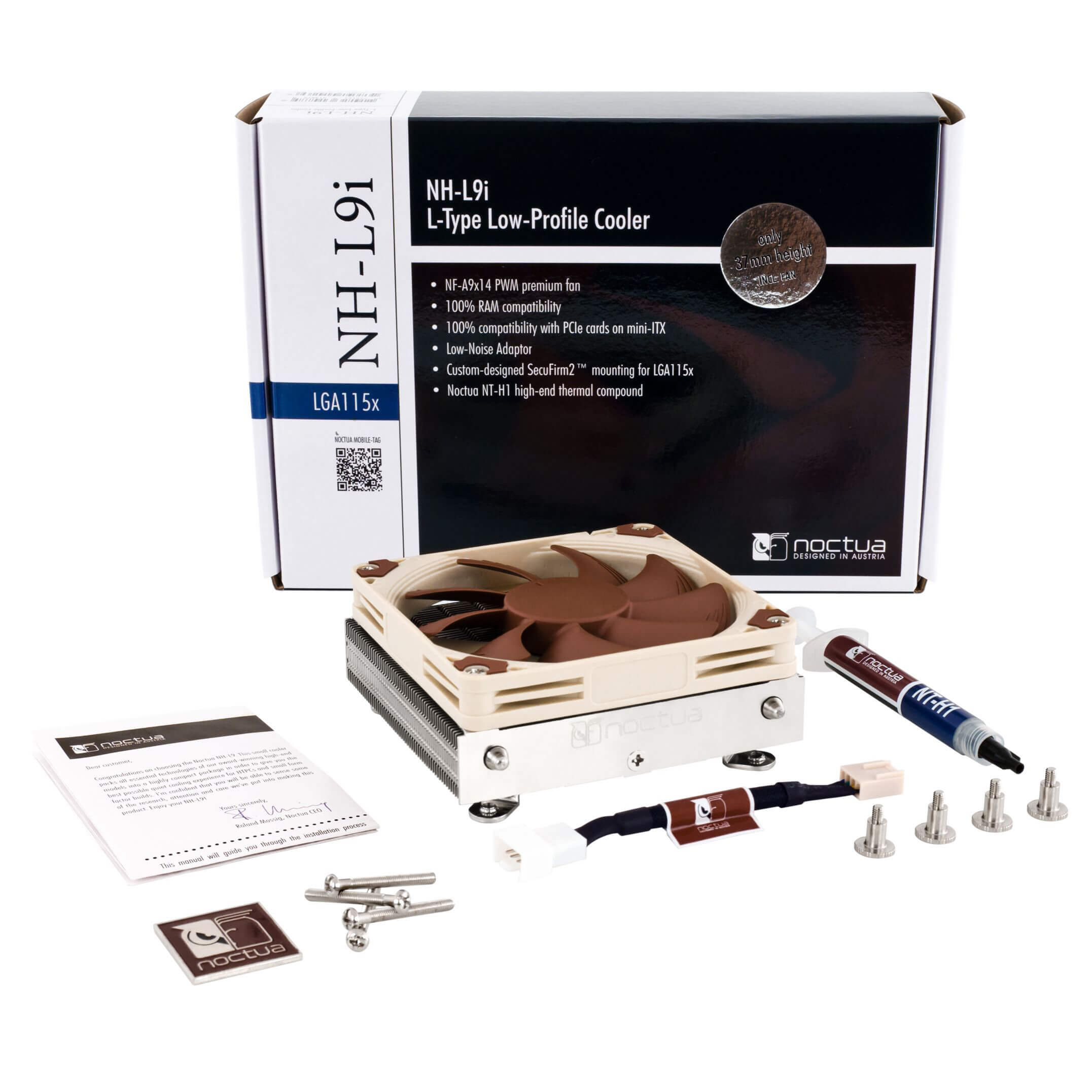

| Package Content | NF-A9x14 PWM premium fan, Low-Noise Adapter (L.N.A.), NT-H1 high-grade thermal compound, SecuFirm2™ Mounting Kit, Screws for 92x92x25mm fans, Noctua Metal Case-Badge |
More details can be found on manufacturer’s website.
